FT5320M High Torque 67g 20Kg/cm Digital 180° Rotation Servo FeeTech
by Feetech
SKU 485588
MPN: FT5320M-C004
Availability:
19 in stock
Original price
£15.07
-
Original price
£15.07
Original price
£15.07
Inc VAT
£15.07
-
£15.07
Current price
£15.07
Inc VAT

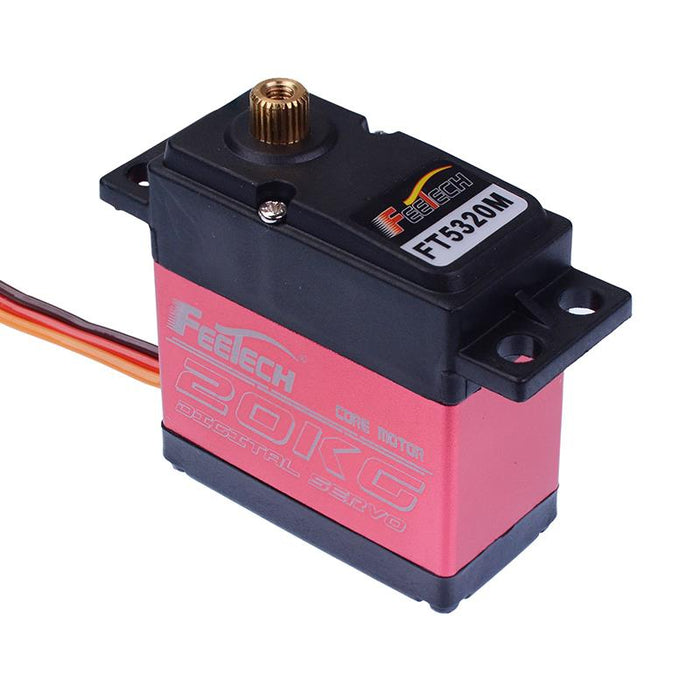

The FT5320M is a digital high torque servo motor with an operating voltage range of 4V to 8.4V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.
Type: digital Speed: 0.185(6V), 0.151(7.4V) sec/60° Torque: 16.5(6V), 20(7.4V) kg/cm Rotation: 180° Gears: metal Operating voltage: 4-8.4V Cable length: 30cm Weight: 67g Dimensions: 40 x 20 x 47.4mm (LxWxH) Includes adjustable servo arm, accessories and bag
Specification
Back order lead time | 30 Days |
Cable length | 300mm |
Gear spline | 25T |
Gear type | Metal |
Height | 43mm |
Idle current | 6mA at 6V |
Input voltage | 4-8.4V |
Length | 55mm |
No load speed | 0.185sec/60degree at 6V |
Operating temperature | -20°C to +60°C |
Peak stall torque | 16.5kg.cm at 6V |
Running current | 100mA at 6V |
Stall current | 2.3A at 6V |
Total rotation | 180° |
Type | Digital |
Weight | 67g |
Width | 20mm |
