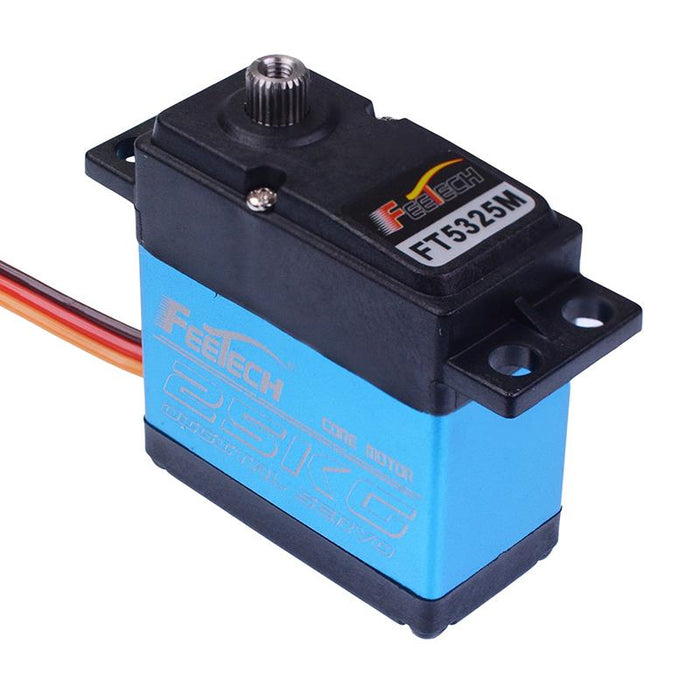

FT5325M High Torque 67g 25Kg/cm Digital 180° Rotation Servo FeeTech
by Feetech
SKU 485589
MPN: FT5325M-C012
Availability:
Only 5 left!
Original price
£16.67
-
Original price
£16.67
Original price
£16.67
Inc VAT
£16.67
-
£16.67
Current price
£16.67
Inc VAT
The FT5325M is a digital high torque servo motor with an operating voltage range of 4V to 8.4V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.
Type: digital Speed: 0.185(6V), 0.151(7.4V) sec/60° Torque: 20.5(6V), 25(7.4V) kg/cm Rotation: 180° Gears: metal Operating voltage: 4-8.4V Cable length: 30cm Weight: 67g Dimensions: 40 x 20 x 47.4mm (LxWxH) Includes adjustable servo arm, accessories and bag
Specification
| Back order lead time | 30 Days |
| Cable length | 300mm |
| Gear spline | 25T |
| Gear type | Metal |
| Height | 43mm |
| Idle current | 6mA at 6V |
| Input voltage | 4-8.4V |
| Length | 55mm |
| No load speed | 0.185sec/60degree at 6V |
| Operating temperature | -20°C to +60°C |
| Peak stall torque | 20.5kg.cm at 6V |
| Running current | 100mA at 6V |
| Stall current | 3A at 6V |
| Total rotation | 180° |
| Type | Digital |
| Weight | 67g |
| Width | 20mm |
