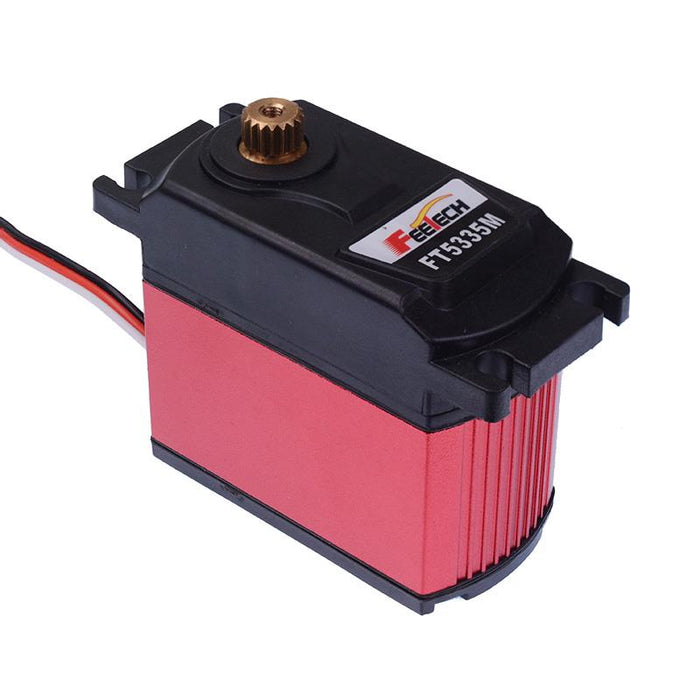

FT5335M High Torque 40Kg Digital Servo FeeTech
by Feetech
SKU 485580
MPN: FT5335M
Availability:
8 in stock
Original price
£33.18
-
Original price
£33.18
Original price
£33.18
£33.18
-
£33.18
Current price
£33.18
The FT5335M is a digital high torque servo motor with an operating voltage between 4V to 8.4V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.
Type: digital Speed: 0.2(6V), 0.18(8.4V) sec/60° Torque: 32.5(6V), 40.5(8.4V) kg/cm Gears: metal Operating voltage: 4-8.4V Rotation: 120° Cable length: 300mm Weight: 178g Dimensions: 65.8 x 30 x 57.4mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 300mm |
| Gear Spline | 25T |
| Gear Type | Metal |
| Height | 55.9mm |
| Idle Current | 8mA at 6V |
| Input Voltage | 4-8.4V |
| Length | 62.8mm |
| No Load Speed | 0.2sec/60degree at 6V |
| Operating Temperature | -15°C to +70°C |
| Peak Stall Torque | 32.5kg.cm at 6V |
| Running Current | 250mA at 6V |
| Stall Current | 2A at 6V |
| Total Rotation | 120° |
| Type | Digital |
| Weight | 178g |
| Width | 32.5mm |
