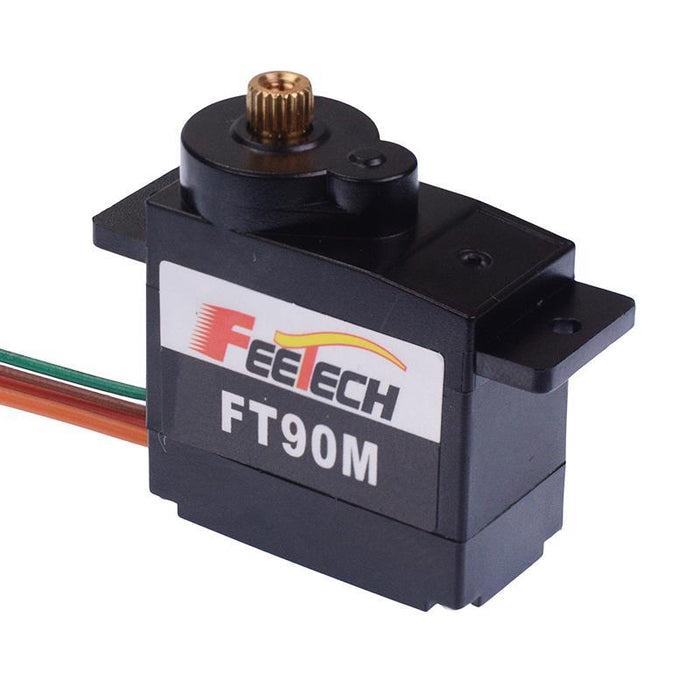

FT90M-FB Micro 13.5g Digital Servo FeeTech

by Feetech
SKU 485567


Only 4 left!
Original price £9.19 - Original price £9.19
Original price
£9.19 Inc VAT
£9.19 - £9.19
Current price £9.19 Inc VAT

The FT90M-FB is a digital micro servo motor with an operating voltage between 3V to 8.4V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications. Features Postional Feedback with extra green lead.

  • Type: digital
  • Speed: 0.12(4.8V), 0.1(6V) sec/60°
  • Torque: 1.9(4.8V), 2.3(6V) kg/cm
  • Position Feedback
  • Rotation: 280°
  • Operating voltage: 3-8.4V
  • Gears: metal
  • Cable length: 250mm
  • Weight: 13.5g
  • Dimensions: 23.3 x 12.1 x 25.5mm (LxWxH)
Back order lead time 30 Days
Cable length 250mm
Gear spline 20T
Gear type Metal
Height 25.25mm
Idle current 5mA at 4.8V
Input voltage 3-8.4V
Length 23.2mm
No load speed 0.125sec/60degree at 4.8V
Operating temperature -20°C to +60°C
Peak stall torque at 4.8V
Running current 120mA at 4.8V
Stall current 800mA at 4.8V
Total rotation 280°
Type Digital
Weight 13.5g
Width 12.1mm
