FT90M Micro 13.5g Digital Servo FeeTech
by Feetech
SKU 485565
MPN: FT90M
Availability:
14 in stock
Original price
£8.84
-
Original price
£8.84
Original price
£8.84
£8.84
£8.84
-
£8.84
Current price
£8.84

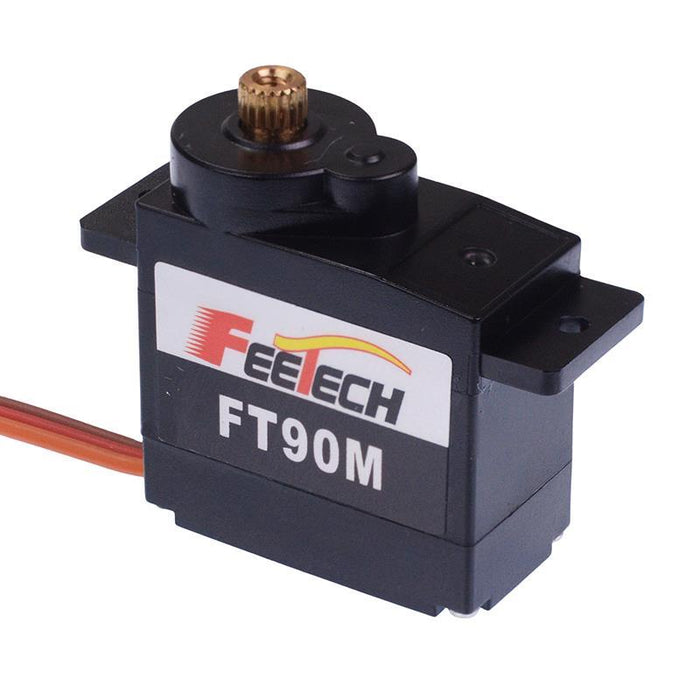

The FT90M is a digital micro servo motor with an operating voltage between 3V to 8.4V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.
Type: digital Speed: 0.12(4.8V), 0.1(6V) sec/60° Torque: 1.9(4.8V), 2.3(6V) kg/cm Rotation: 280° Operating voltage: 3-8.4V Gears: metal Cable length: 250mm Weight: 13.5g Dimensions: 23.3 x 12.1 x 25.5mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 250mm |
| Gear Spline | 20T |
| Gear Type | Metal |
| Height | 25.25mm |
| Idle Current | 5mA at 4.8V |
| Input Voltage | 3-8.4V |
| Length | 23.2mm |
| No Load Speed | 0.125sec/60degree at 4.8V |
| Operating Temperature | -20°C to +60°C |
| Peak Stall Torque | 1.89kg.cm at 4.8V |
| Running Current | 120mA at 4.8V |
| Stall Current | 800mA at 4.8V |
| Total Rotation | 280° |
| Type | Digital |
| Weight | 13.5g |
| Width | 12.1mm |
