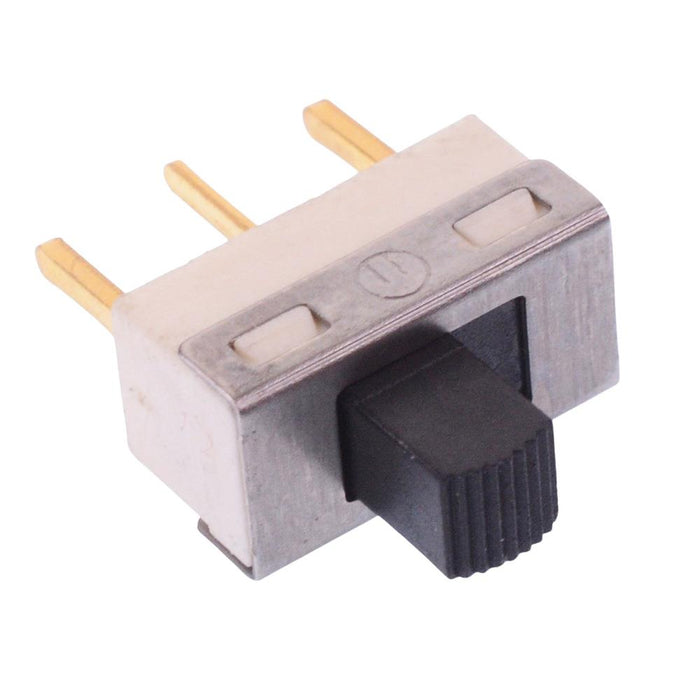

GH36P000000 APEM On-On PCB Slide Switch SPDT
by APEM
SKU 488087
MPN: GH36P000000
Availability:
58 in stock
Original price
£2.65
-
Original price
£2.65
Original price
£2.65
£3.00
£3.00
-
£3.00
Current price
£3.00
The GH36P000000 is a telecom grade slide switch featuring gold plated PCB terminals and SPDT contacts. The switch features a 5.1mm height actuator and is suitable for professional applications.
On-On function Contacts: SPDT Rating: 0.4VA 20VAC/DC 5.1mm height actuator Gold plated brass terminals PCB terminals Terminal pitch: 4.7mm Dimensions: 12.7 x 6.65mm (length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Electrical Life | 60,000 Cycles |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 85°C |
| Pitch | 4.7mm |
| Product Series | G |
| Switch Operation | On-On |
| Terminal Type | PCB |
| Voltage Rating | 20VAC/DC |
