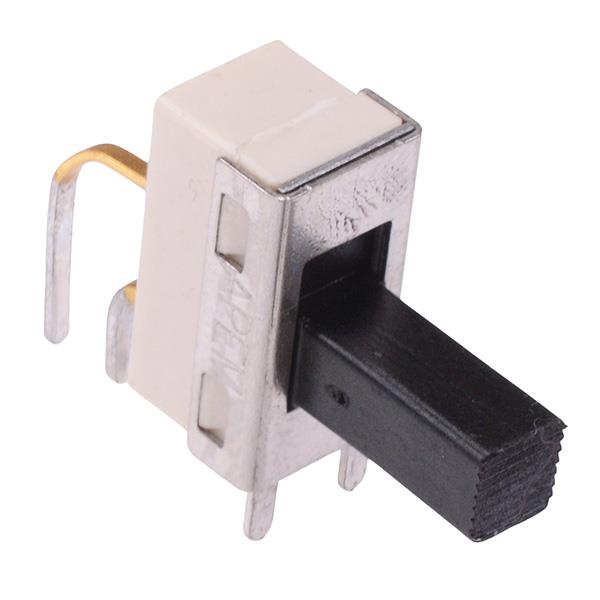

GN31WW80000 APEM On-Off Right Angle PCB Slide Switch SPST

SKU 487926

MPN: GN31WW80000

Back Order Availability: 10 Days

84 in stock, ready to be shipped
Original price £2.16 - Original price £2.16
Original price
£2.16 Inc VAT
£2.16 - £2.16
Current price £2.16 Inc VAT
The GN31WW80000 is a telecom grade slide switch featuring gold plated PCB terminals and SPST contacts. The switch features a 5.9.5mm height actuator and is suitable for professional applications.

  • On-Off function
  • Contacts: SPST
  • Right angle terminals, vertical mounting
  • Rating: 0.4VA 20VAC/DC
  • 9.5mm height actuator
  • Gold plated brass terminals
  • Epoxy sealed PCB terminals
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 60,000 Cycles
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to 85°C
    Pitch 4.7mm
    Product series G
    Switch operation On-Off
    Terminal type PCB
    Voltage rating 20VAC/DC
