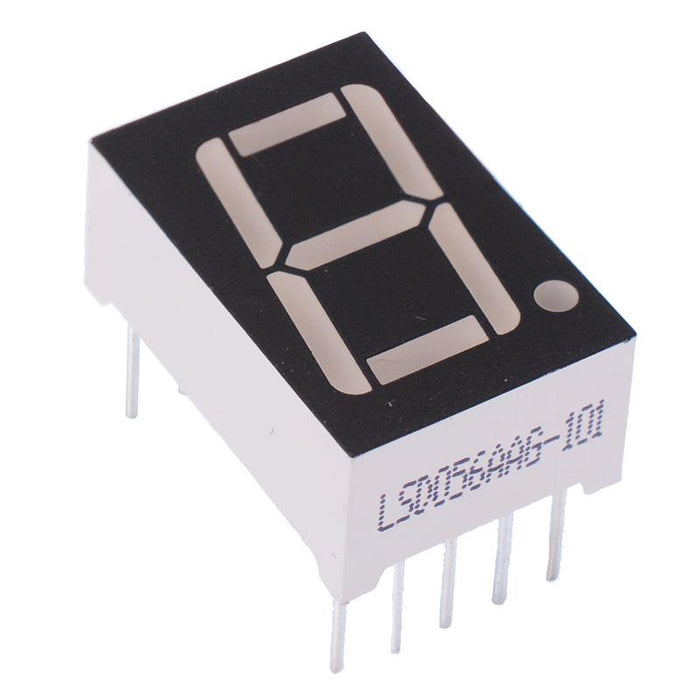

Green 0.56" Seven Segment Display Cathode LED 5.5mcd

SKU 485652

MPN: 485652

Availability:
441 in stock
Original price £0.40 - Original price £0.40
Original price
£0.40 Inc VAT
£0.40 - £0.40
Current price £0.40 Inc VAT
Green 7 segment display featuring excellent visibility and a long lifespan. The LED provides a consistent brightness throughout the display and is suitable for PC Boards and socket mounting.

  • Common cathode
  • 7-segment size: 0.56”
  • Black background
  • Dimensions: 19.0 x 12.6 x 8.0mm
  • Specification
    Back order lead time 5 Days
    Character height 0.56"
    Character width 8.1mm
    Colour Green
    Depth 19mm
    Forward current 20mA
    Forward voltage 2.0V
    Height 8mm
    Lens colour White Diffused
    Luminous intensity 5.5mcd
    Mounting style Through Hole
    Number of pins 10
    Operating temperature -40°C to +85°C
    Package 12.6 x 19.0mm
    Packaging Bulk
    Power dissipation 70mW
    Wavelength 570nm
    Width 12.6mm
