Green 10mm Clear Round LED 30° 800mcd

SKU 486665

MPN: 486665

Out of stock
Sold out
Original price £0.25 - Original price £0.25
Original price
£0.25 Inc VAT
£0.25 - £0.25
Current price £0.25 Inc VAT

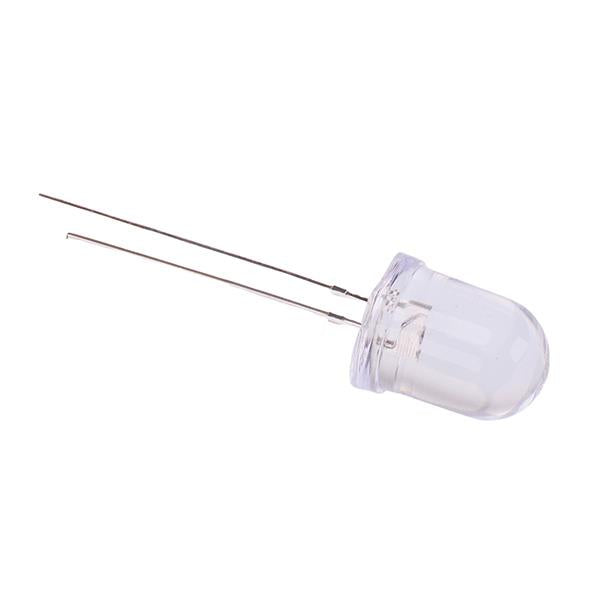

Green 10mm round through hole LED housed in a water clear package. The LEDs feature a low power consumption and are suitable for a wide range of applications including backlighting, indication, illumination, toys etc.

  • 10mm package
  • Wavelength: 570nm
  • Forward voltage: 2-2.2V
  • Forward current: 15-18mA
  • Luminous intensity: 800mcd
  • Viewing angle: 30°
  • 2.54mm lead pitch
  • Specification
    Colour Green
    Diameter 10mm
    Forward current 18mA
    Forward voltage 2-2.2V
    Lens colour Clear
    Lens shape Round
    Luminous intensity 800mcd
    Mode Constant
    Mounting style Through Hole
    Number of pins 2
    Operating temperature -25°C to 85°C
    Package 10mm
    Packaging Bulk
    Viewing angle 30°
    Wavelength 570nm
