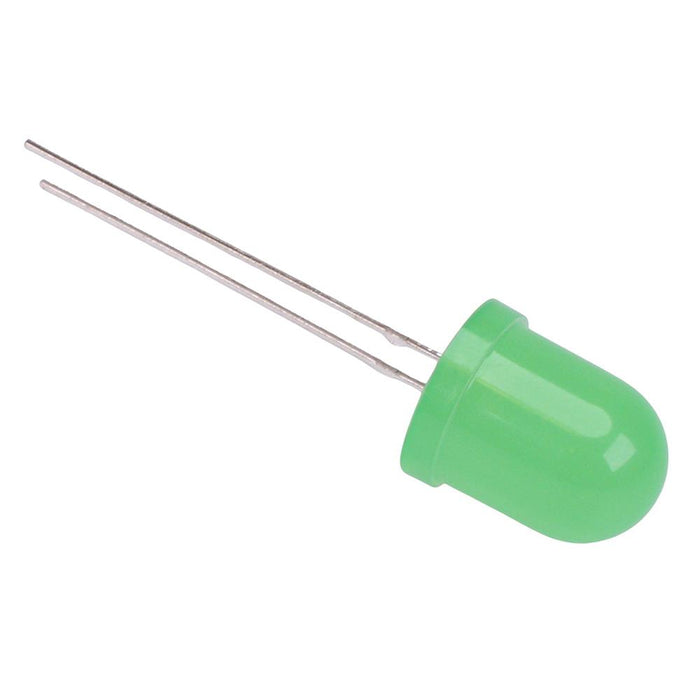

Green 10mm LED Diffused Lens 2900mcd 60°
by Luckylight
SKU 491945
MPN: 1004PGD2R-G5-2B
Availability:
4978 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
£0.15
£0.15
-
£0.15
Current price
£0.15
Green 10mm LED featuring a diffused package with 2.54mm pitch leads and 2900mcd luminous intensity. Suitable for applications including indication, backlighting and illumination.
Luminous intensity: 2900mcd Wavelength: 525nm Viewing angle: 60° Forward voltage: 3.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 60 Days |
| Colour | Green |
| Diameter | 10mm |
| Forward Current | 25mA |
| Forward Voltage | 3.0V |
| Lens Colour | Green |
| Lens Shape | Round |
| Luminous Intensity | 2900mcd |
| Mode | Constant |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 80°C |
| Package | 10mm |
| Packaging | Bulk |
| Power Dissipation | 85mW |
| Viewing Angle | 60° |
| Wavelength | 525nm |
