Green 12V illuminated Waterproof 20mm Round Rocker Switch DPST 20A R13-244B8-02
by SCI
SKU 491489
MPN: R13-244B8-02-BBG
Availability:
14 in stock
Original price
£2.22
-
Original price
£2.22
Original price
£2.22
£2.22
£2.22
-
£2.22
Current price
£2.22

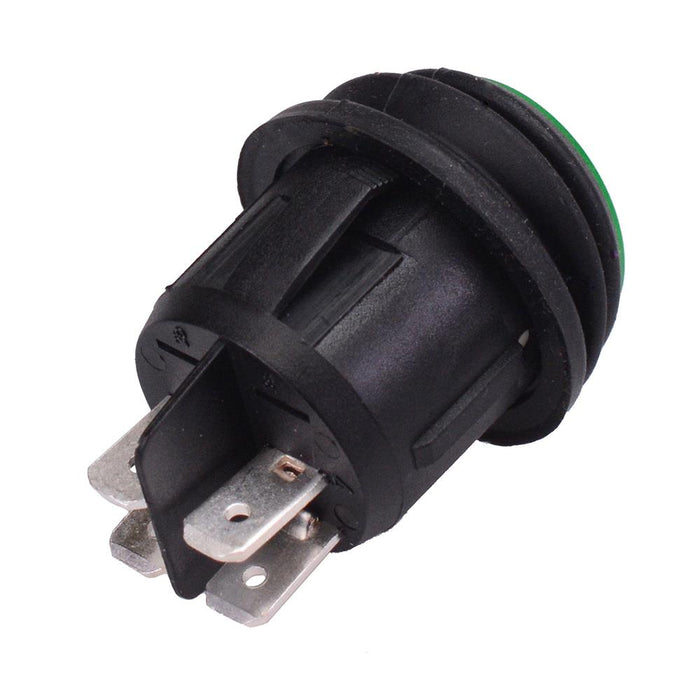

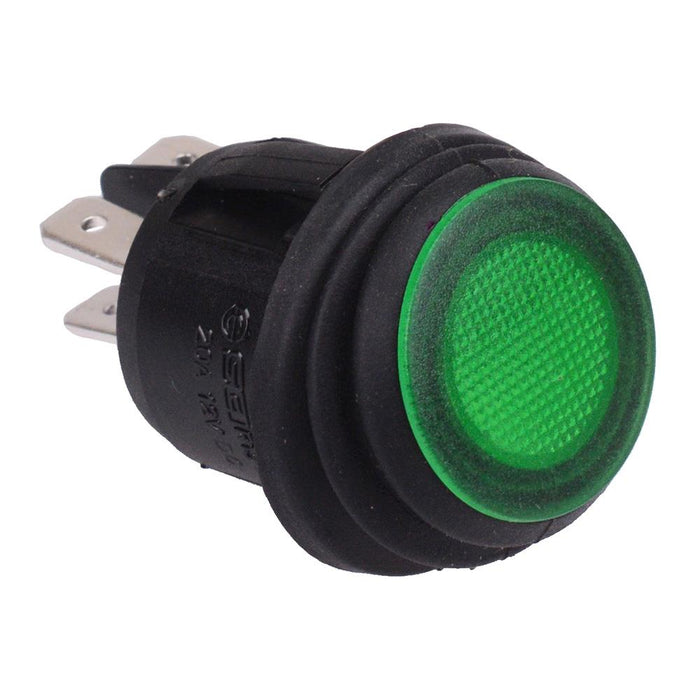

Green illuminated waterproof circular rocker switch featuring a 12V neon lamp and DPST contacts. The switch requires a 20mm panel cut-out and features 4.8mm quick connect terminals. The switch is suitable for a wide range of DC and automotive applications.
Green neon lamp illumination voltage: 12VDC Protection level: IP65 Function: On-Off Contacts: DPST Panel cut-out: 20.2mm Panel thickness: 0.7-2.5mm Terminals: 4.8mm quick connect Rating: 20A 12VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.7-2.5mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
