Green 12V LED 25mm Round Push Button Switch DPST 20A R13-541BL-01-BG-L1
by SCI
SKU 491497
MPN: R13-541BL-01-BG-L1
Availability:
10 in stock
Original price
£4.28
-
Original price
£4.28
Original price
£4.28
£4.28
£4.28
-
£4.28
Current price
£4.28

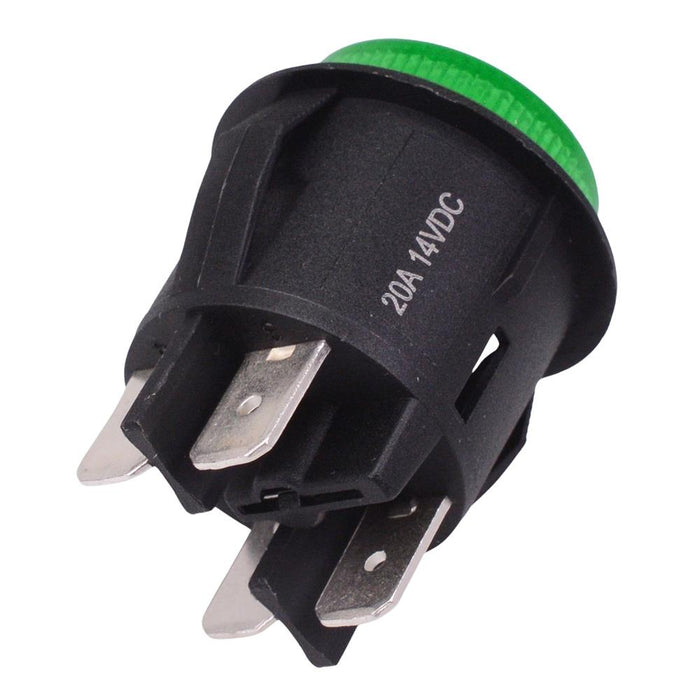

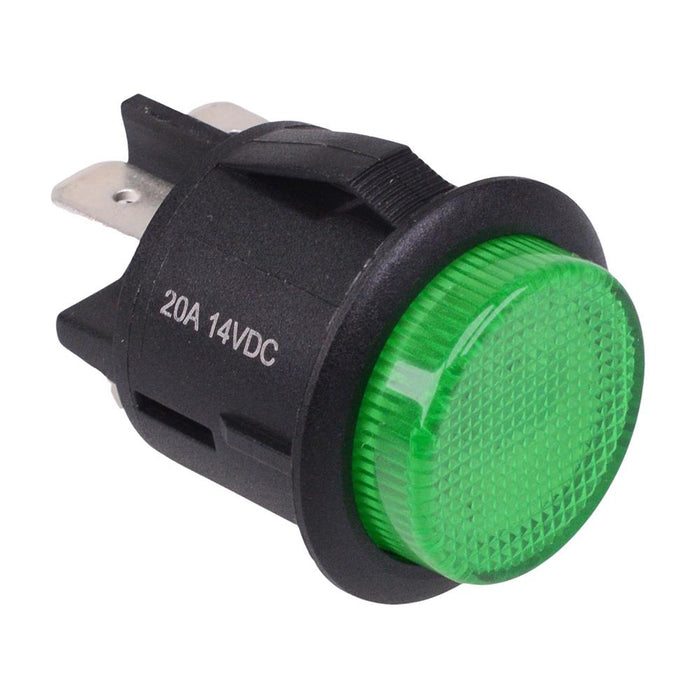

Green 12V illuminated R13-541BL push button switch featuring a latching On-Off function and DPST contacts. The switch requires a 25mm panel cut-out and is suitable for snap-in mounting. The switch features quick connect terminals and is suitable for a wide range of DC high current applications.
Function: latching On-Off Contacts: DPST Green 12V LED illumination Panel cut-out: 25mm Panel thickness: 0.7-5mm Rating: 20A 14VDC, 10A 28VDC 6.3mm quick connect terminals Dimensions: 28 x 35mm (diameter x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Colour | Green |
| Contact Configuration | DPST |
| Contact Rating | 20A 14VDC, 10A 28VDC |
| Current Rating | 20A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 25mm |
| Panel Thickness | 0.7-5mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 28VDC |
