Green 12V LED Rectangle Rocker Switch 25A SPST R13-242L-01
by SCI
SKU 491440
MPN: R13-242L-01-BBG
Availability:
13 in stock
Original price
£1.56
-
Original price
£1.56
Original price
£1.56
£1.56
£1.56
-
£1.56
Current price
£1.56

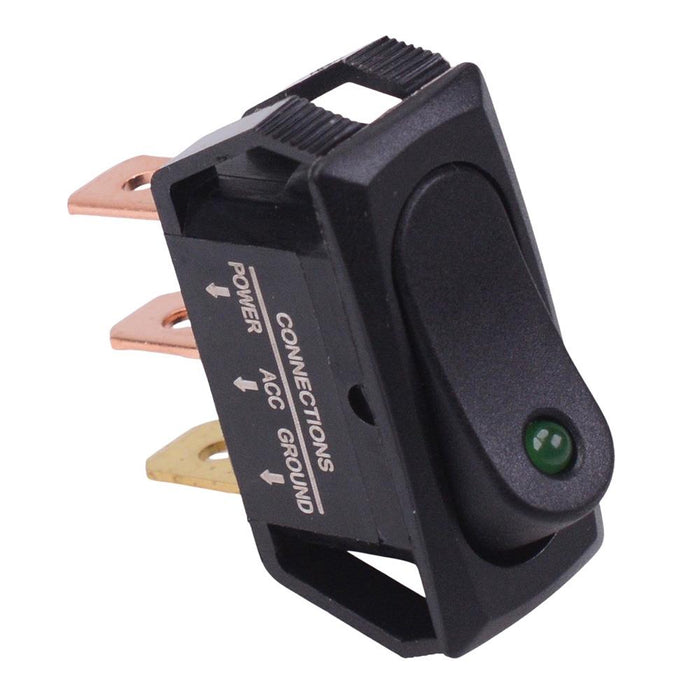

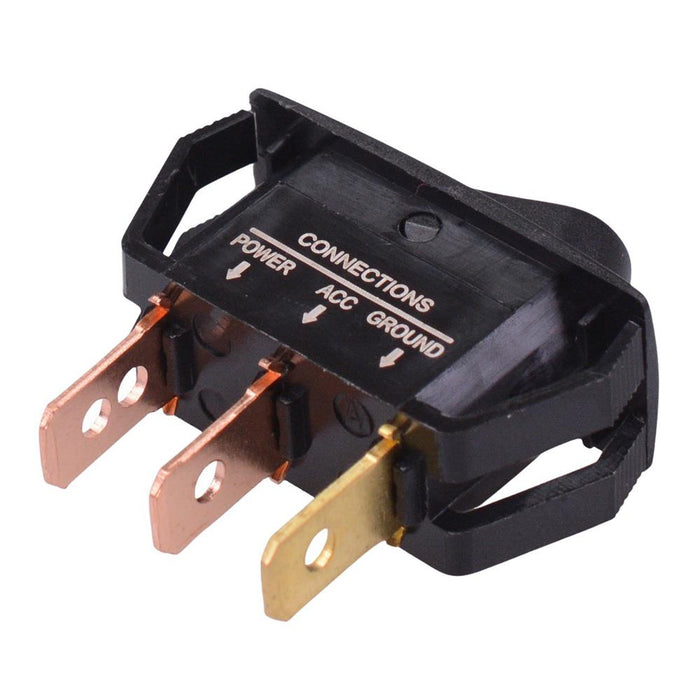

R13-242L rectangle rocker switch featuring green 12V illumination and SPST contacts. The switch requires a 28.5 x 11.6mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 25A and is suitable for a wide range of DC automotive applications.
Function: On-Off Contacts: SPST Green 12V LED illumination Panel cut-out: 28.5 x 11.6mm Panel thickness: 0.75-3mm Rating: 25A 12VDC 6.3mm quick connect terminals Dimensions: 30.5 x 14.0 x 32.6mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 25A 12VDC |
| Current Rating | 25A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 28.5 x 11.6mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
