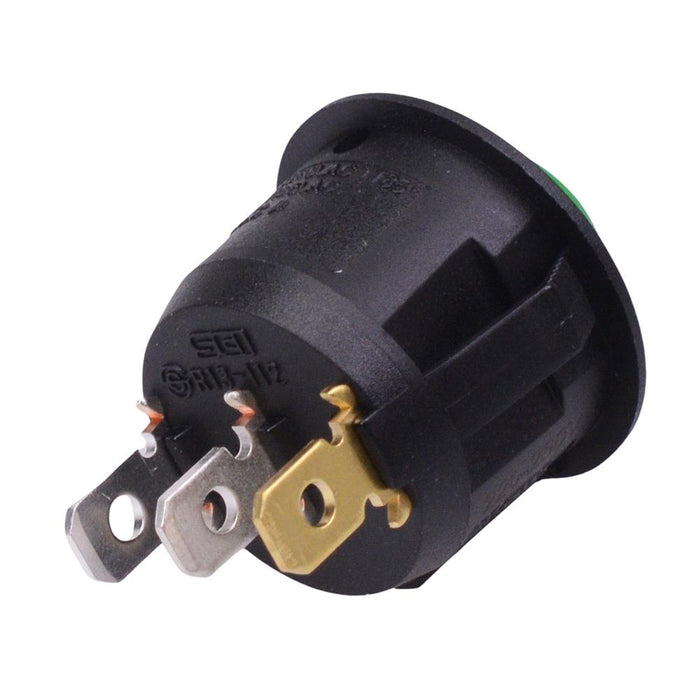

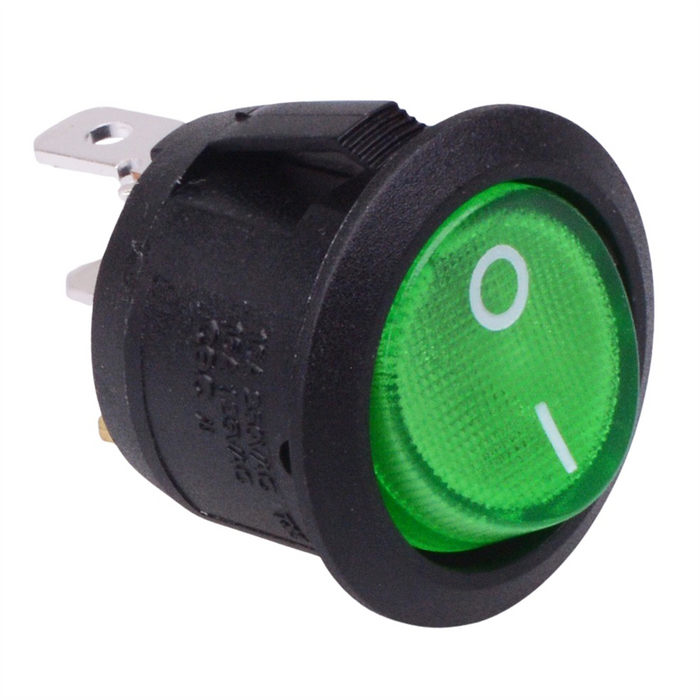

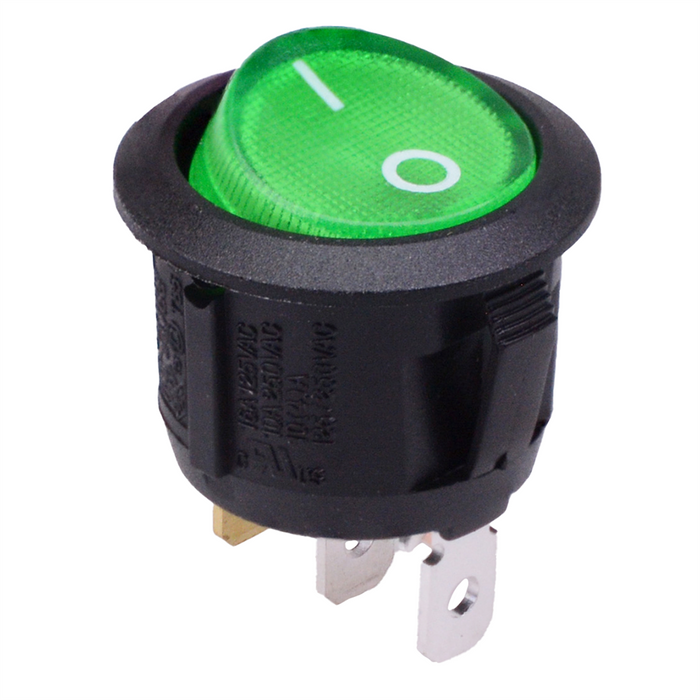

Green 230V illuminated Off-(On) Momentary 20mm Round Rocker Switch SPST 10A
by SCI
SKU 491477
MPN: R13-112BF-02-BG-2-N-2
Availability:
20 in stock
Original price
£1.62
-
Original price
£1.62
Original price
£1.62
£1.70
£1.70
-
£1.70
Current price
£1.70
Green illuminated momentary circular rocker switch featuring a 230V neon lamp and SPST contacts. The switch requires a 20mm panel cut-out and features 4.8mm quick connect terminals. The switch is suitable for a wide range of AC applications.
Green neon lamp illumination voltage: 230V Function: momentary Off-(On) Contacts: SPST Panel cut-out: 20.2mm Panel thickness: 0.7-3mm Terminals: 4.8mm quick connect Rating: 10A 250VAC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 16A 125VAC, 10A 250VAC |
| Current Rating | 16A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 230VAC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.7-2.5mm |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
