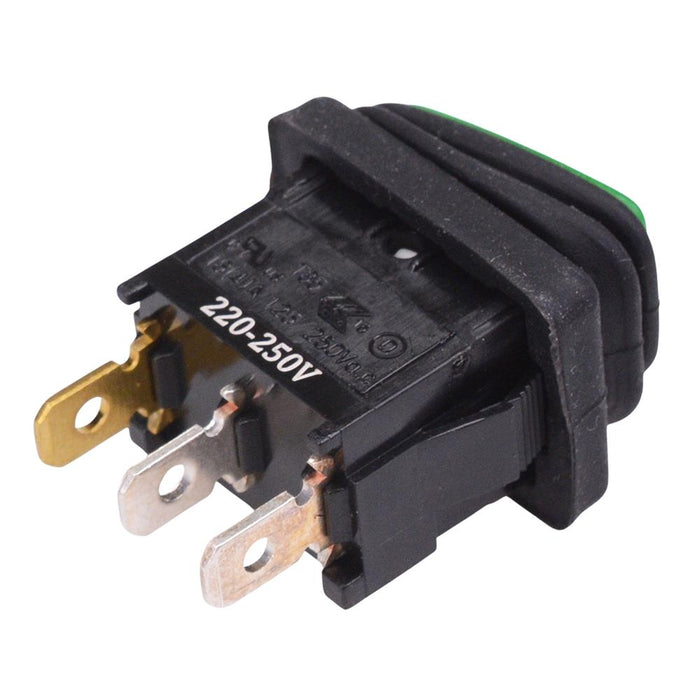

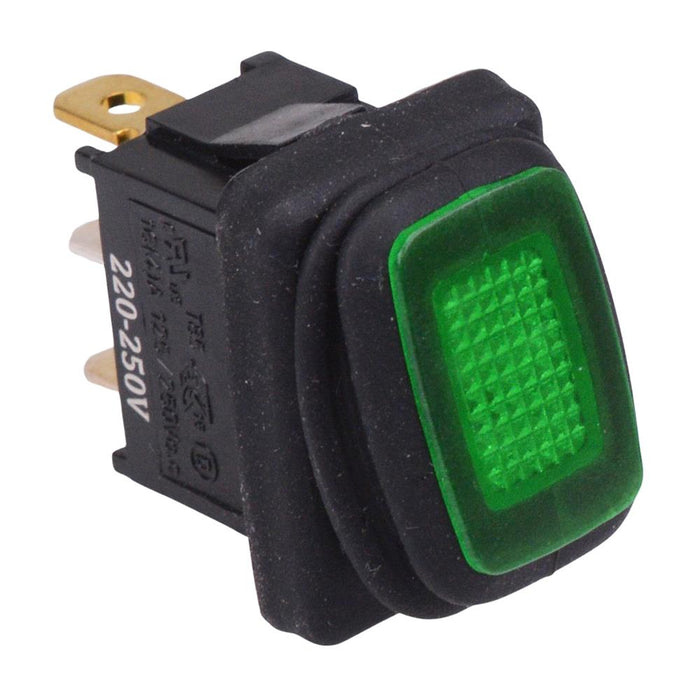

Green 230V illuminated Waterproof On-Off Rectangle Rocker Switch SPST 10A R13-66B8-02
by SCI
SKU 491455
MPN: R13-66B8-02-BBG
Availability:
Out of stock
Sold out
Original price
£2.18
-
Original price
£2.18
Original price
£2.18
£2.18
£2.18
-
£2.18
Current price
£2.18
Green illuminated R13-66A8-02 waterproof rectangle rocker switch featuring SPST contacts and On-Off function. The switch requires a 19.4 x 13mm panel cut-out and features 4.8mm quick connect terminals. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Function: On-Off Contacts: SPST Green 230V neon lamp Panel cut-out: 19.4 x 13mm Panel thickness: 0.75-2.5mm Protection level: IP65 Rating: 10A 250VAC, 16A 125VAC 4.8mm quick connect terminals Dimensions: 23.4 x 17.4 x 32.5mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 16A 125VAC, 10A 250VAC |
| Current Rating | 16A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 230VAC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 19.4 x 13mm |
| Panel Thickness | 0.75-2.5mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
