Green 24V 8mm Panel Indicator LED Light R9-73L-11
by SCI
SKU 491315
MPN: R9-73L-11-24GREEN
Availability:
Out of stock
Sold out
Original price
£1.28
-
Original price
£1.28
Original price
£1.28
£1.28
£1.28
-
£1.28
Current price
£1.28

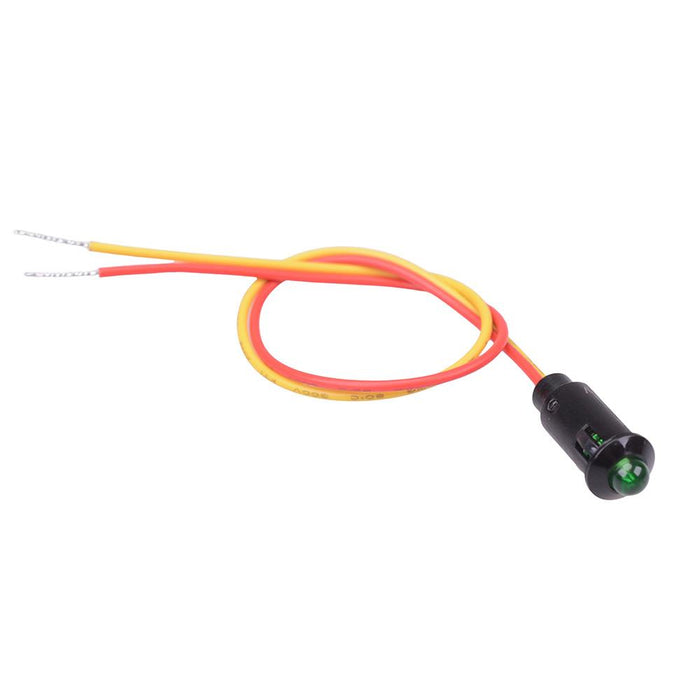

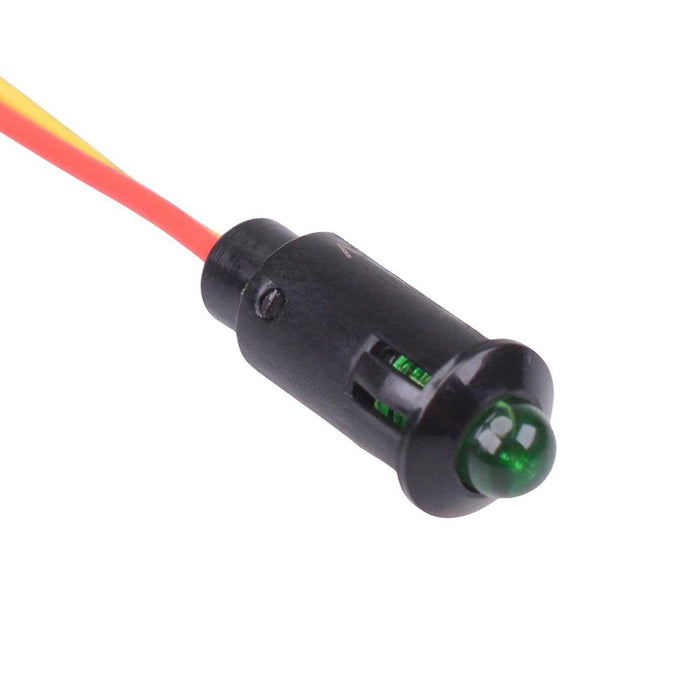

The R9-73L-11 is a 24V green LED panel indicator light featuring 8.2mm cut-out and prewired with 170mm leads, suited for signal and panel applications.
Green LED LED voltage: 24VDC Panel cut-out: 8.2mm Housing material: nylon Cable length: 170mm Cable size: 24AWG UL1007 LED forward current: 20mA Luminous intensity: 350mcd Viewing angle: 25° Dimensions: 22.5 x 9.4mm (height x diameter)
Specification
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 22.5mm |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -20°C to +80°C |
| Panel Cut Out | 8.2mm |
| Panel Thickness | 0.5-2mm |
| Protection Level | IP40 |
| Voltage Rating | 24VDC |
