Green 3528 SMD PLCC-2 LED Water Clear 1200mcd 120°

SKU 490462

MPN: R3528PGC-G5-1B

Availability:
4985 in stock
Original price £0.13 - Original price £0.13
Original price
£0.13
£0.13 - £0.13
Current price £0.13

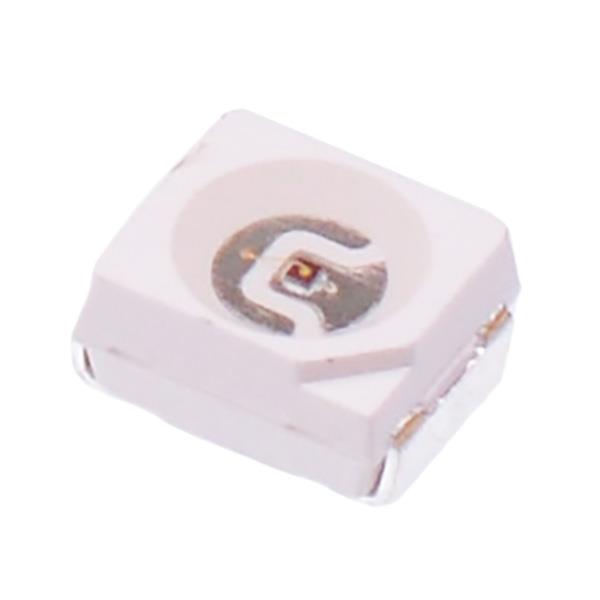

Green surface mount LED housed in a 3528 package featuring 1200mcd luminous intensity, suitable for a wide range of applications including automotive, backlighting, signage and indication.

  • 3528 PLCC-2 package
  • Luminous intensity: 1200mcd
  • 120° viewing angle
  • Wavelength: 525nm
  • Forward voltage: 3.2V
  • Forward current: 25mA
  • Clear lens
  • UV resistant
  • Supplied on tape packaging
  • Dimensions: 3.5 x 2.8 x 1.9mm
  • Specification
    Back Order Lead Time 40 Days
    Colour Green
    Forward Current 25mA
    Forward Voltage 3.2V
    Height 1.9mm
    Length 3.5mm
    Lens Colour Clear
    Luminous Intensity 1200mcd
    MOQ 5
    Mounting Style Surface Mount
    Number of Pins 2
    Operating Temperature -40°C to 80°C
    Package 3528
    Packaging Cut-Tape
    Power Dissipation 90mW
    Viewing Angle 120°
    Wavelength 525nm
    Width 2.8mm
