Green 3mm Cylindrical Flat Top LED 3800mcd
SKU 484817
MPN: 484817
Availability:
Only 3 left!
Original price
£0.15
-
Original price
£0.15
Original price
£0.15
£0.15
-
£0.15
Current price
£0.15

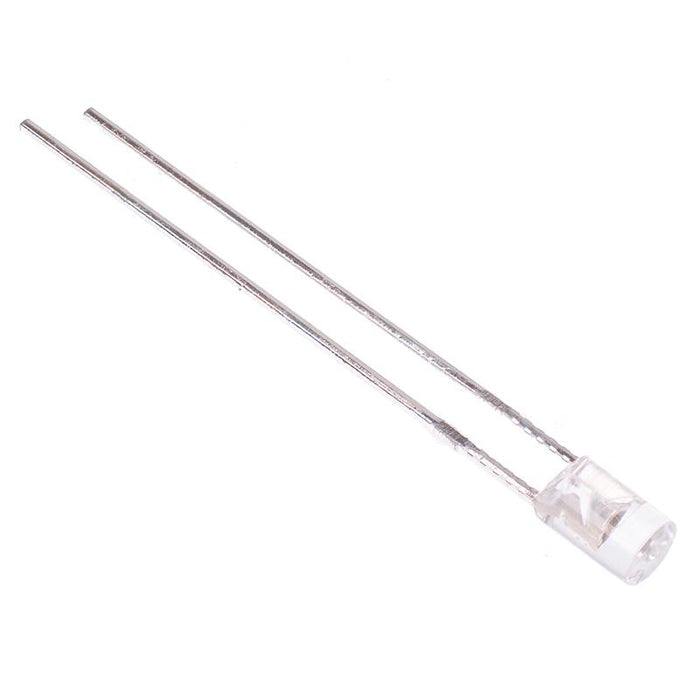

Green 3mm cylindrical LED with a clear lens, featuring a low power consumption and a long lifespan. The LEDs are suitable for a variety of applications including indicators, backlighting and signs.
Suitable for through hole mounting Cathode identified as the shorter lead Clear lens Luminous intensity: 3800mcd Forward voltage: 3.2V Forward current: 25mA Wavelength: 525nm
Specification
| Back Order Lead Time | 40 Days |
| Colour | Green |
| Diameter | 3mm |
| Forward Current | 25mA |
| Forward Voltage | 3.2V |
| Lens Colour | Clear |
| Lens Shape | Cylindrical |
| Luminous Intensity | 3800mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 3mm |
| Packaging | Bulk |
| Power Dissipation | 90mW |
| Viewing Angle | 100° |
| Wavelength | 525nm |
