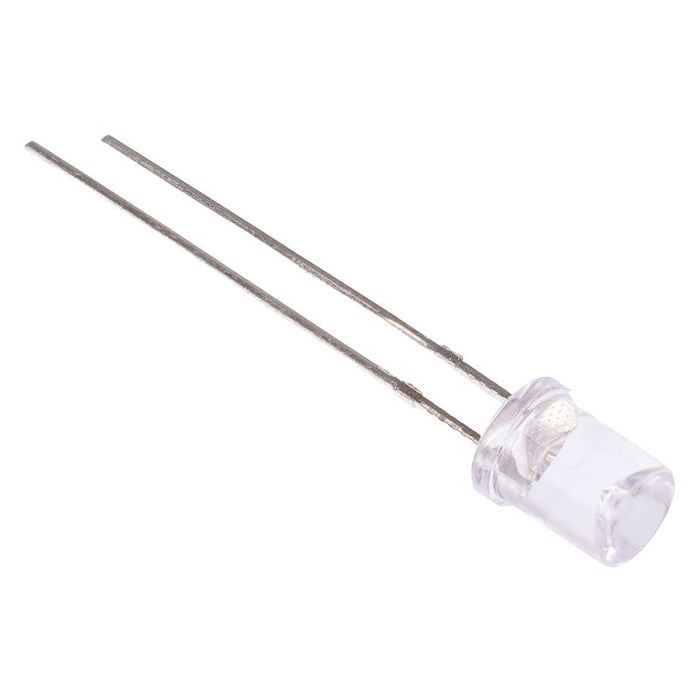

Green 5mm Concave Water Clear LED 460mcd 100°
by Luckylight
SKU 485811
MPN: LL-504PGC2K-G5-2C
Availability:
352 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
£0.16
-
£0.16
Current price
£0.16
Green 5mm concave LED featuring a water clear package and 460mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 460mcd Wavelength: 525nm Viewing angle: 100° Forward voltage: 3.2V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 45 |
| Colour | Green |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | 3.2V |
| Lens Colour | Clear |
| Lens Shape | Concave |
| Luminous Intensity | 460mcd |
| Mode | Constant |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +85°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | 95mW |
| Viewing Angle | 100° |
| Wavelength | 525nm |
