Green 5mm Diffused LED 2900mcd 60°
by Luckylight
SKU 484887
MPN: 504PGD2E-G5-2B
Availability:
4809 in stock
Original price
£0.13
-
Original price
£0.13
Original price
£0.13
£0.13
£0.13
-
£0.13
Current price
£0.13

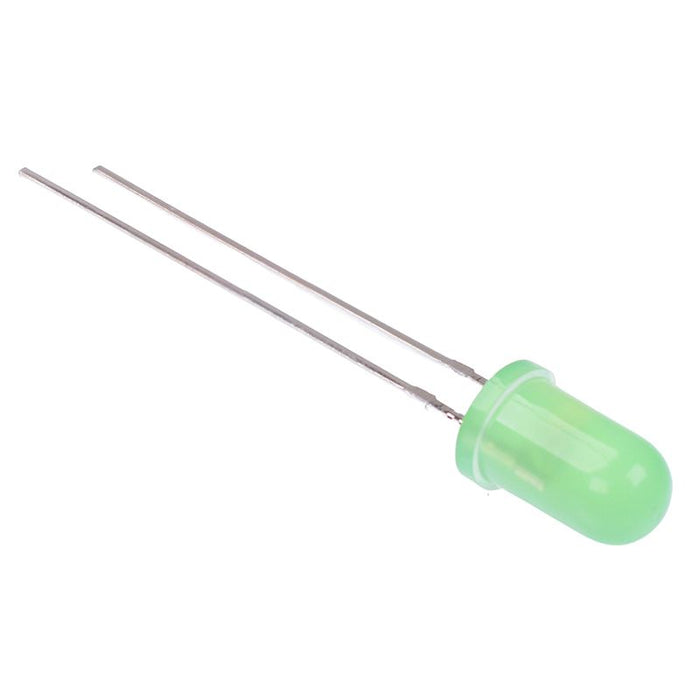

Green 5mm LED featuring a colour diffused package and 2900mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 2900mcd Wavelength: 525nm Viewing angle: 60° Forward voltage: 3.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Colour diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 45 |
| Colour | Green |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | 3.0V |
| Lens Colour | Green |
| Lens Shape | Round |
| Luminous Intensity | 2900mcd |
| Mode | Constant |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | 85mW |
| Viewing Angle | 60° |
| Wavelength | 525nm |
