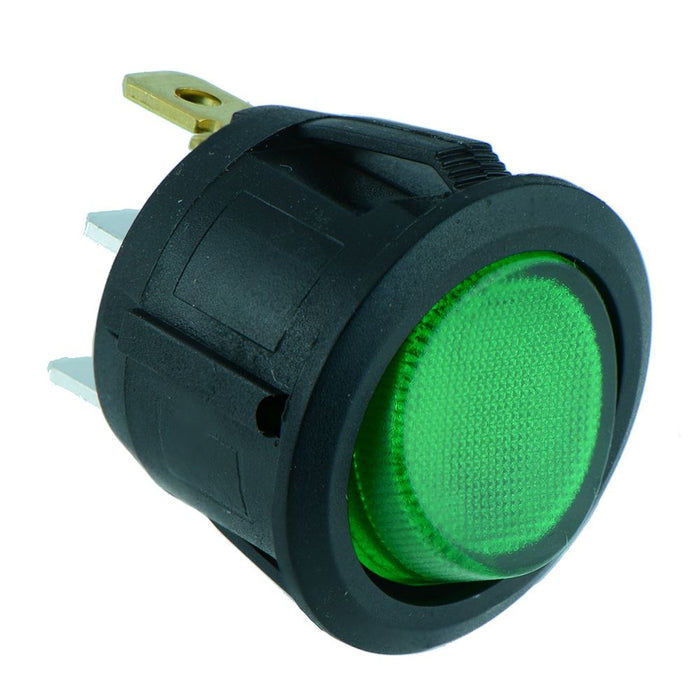

Green illuminated Round Rocker Switch SPST 12V 20A R13-112B-02

by SCI
SKU 551696

MPN: R13-112B-02 Green 12V

Availability:
156 in stock
Original price £1.55 - Original price £1.55
Original price
£1.55 Inc VAT
£1.55 - £1.55
Current price £1.55 Inc VAT
Circular rocker switch featuring SPST contacts and green illumination suitable for a wide range of applications including automotive.

  • SPST contacts
  • On-Off operation
  • Green neon illumination
  • 20.2mm panel cut-out
  • Snap-in mounting
  • 4.8mm quick connect terminals
  • Rating: 20A 14VDC
  • R13-112 series
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Colour Green
    Contact configuration SPST
    Contact rating 20A 14VDC
    Current rating 20A
    Illuminated Yes
    Illumination colour Green
    Illumination voltage 12VDC
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 20.2mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 14VDC
