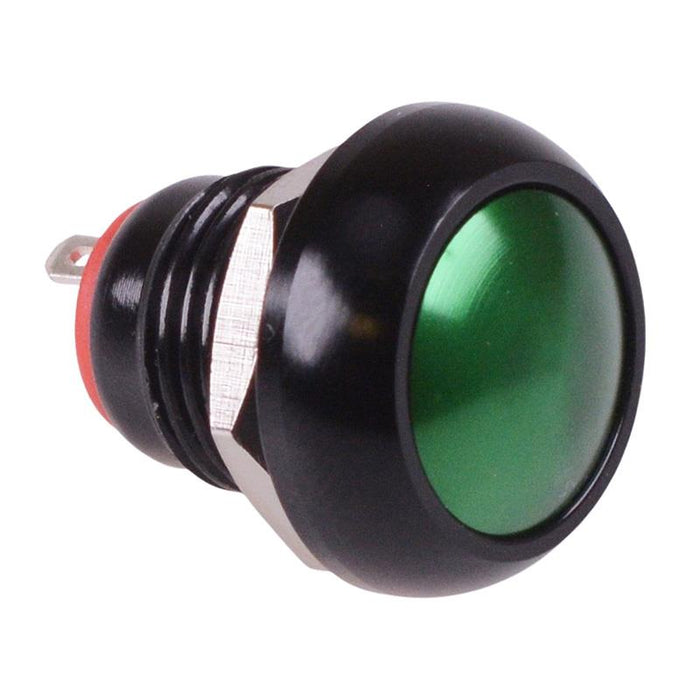

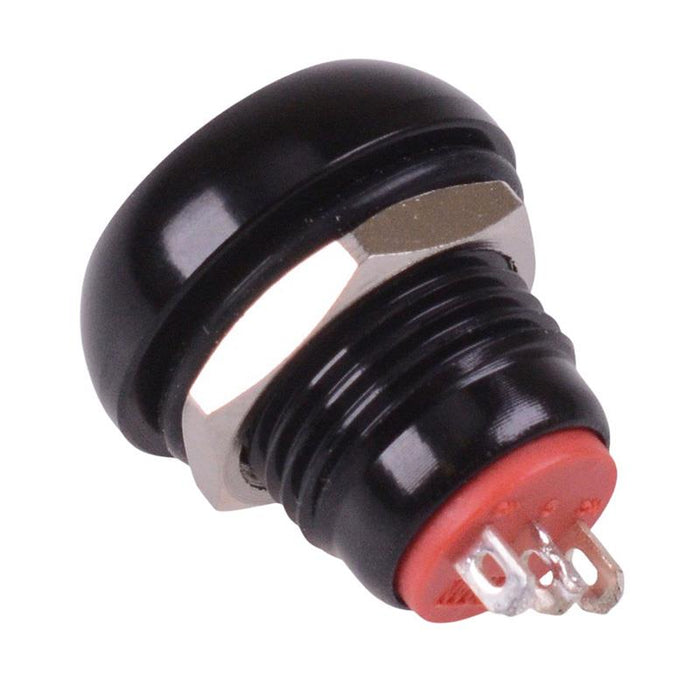

Green Latching 12mm Metal Round Push Button Switch NO/NC
SKU 490293
MPN: HBGQ12B-11Z/K/J/T/G
Availability:
50 in stock
Original price
£3.96
-
Original price
£3.96
Original price
£3.96
£3.96
-
£3.96
Current price
£3.96
Green latching push button switch featuring a round actuator and normally open contacts. The switch features an aluminium housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.
Latching operation NO/NC contacts IP40 protection rating Solder terminals Panel cut-out: 12mm Panel thickness: 4mm max Rating: 0.1A 12V Dimensions: 22.3 x 17.8mm (height x diameter)
Specification
Actuation | Latching |
Back Order Lead Time | 45 Days |
Colour | Green |
Contact Configuration | NO/NC |
Contact Rating | 0.1A 12VDC |
Current Rating | 0.1A |
Electrical Life | 10,000 Cycles |
Illuminated | No |
Material | Aluminium Alloy |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -25°C to +65°C |
Panel Cut Out | 12mm |
Panel Thickness | 4mm Max |
Protection Level | IP40 |
Switch Operation | On-On |
Terminal Type | Solder |
Voltage Rating | 12VDC |
