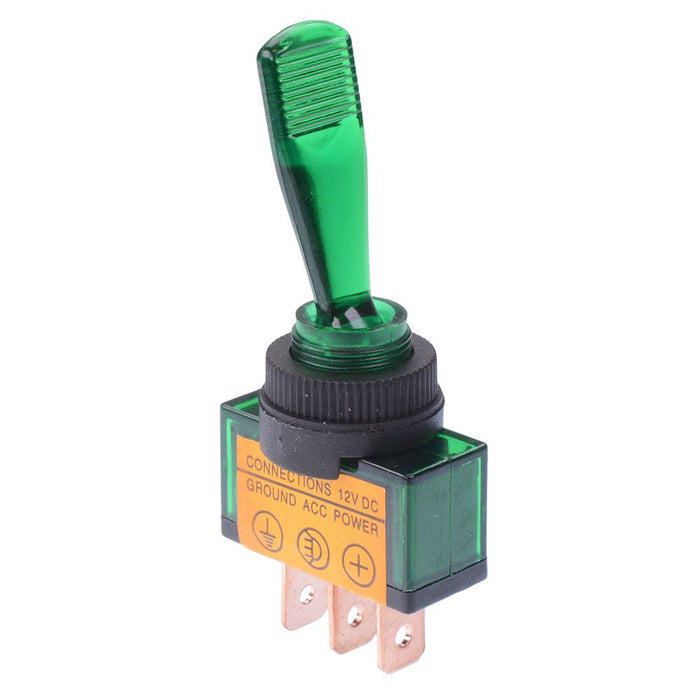

Green LED On-Off Paddle Toggle Switch SPST 20A 12V
SKU 486941
MPN: 486941
Availability:
294 in stock, ready to be shipped
Original price
£1.04
-
Original price
£1.04
Original price
£1.04
Inc VAT
£1.04
-
£1.04
Current price
£1.04
Inc VAT
On-Off toggle switch featuring a paddle style handle and green illumination. The switch is rated up to 20A and requires 12V making it suitable for automotive applications.
Green 12V illumination SPST contacts 12mm panel cut-out Rating: 20A 12VDC 6.35mm quick connect terminals Dimensions: 62 x 26.2 x 12mm (height x length x width)
Specification
| Actuation | Latching |
| Colour | Green |
| Contact configuration | SPST |
| Contact rating | 20A 12VDC |
| Current rating | 20A @ 12VDC |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 12VDC |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
