Green LED On-(On) Momentary 16mm Black Vandal Resistant Push Switch NO/NC
SKU 481599
MPN: 481599
Availability:
67 in stock
Original price
£6.48
-
Original price
£6.48
Original price
£6.48
Inc VAT
£6.48
-
£6.48
Current price
£6.48
Inc VAT

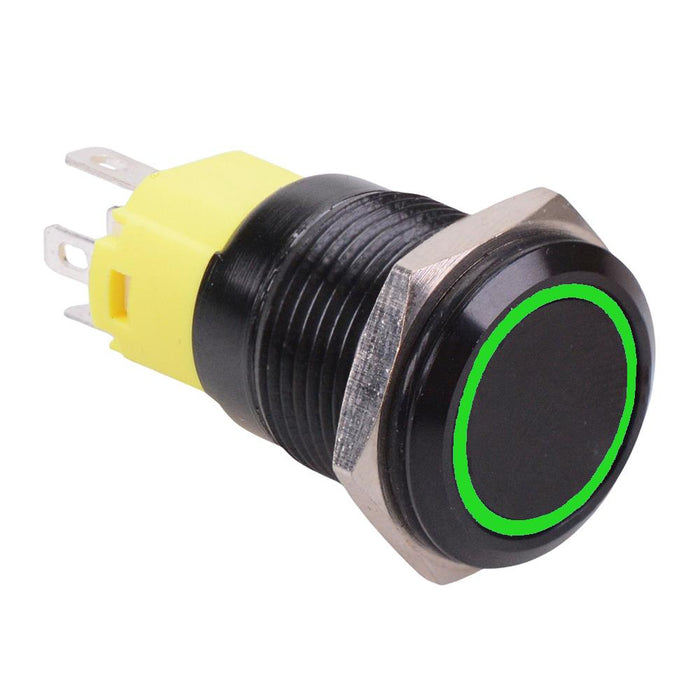

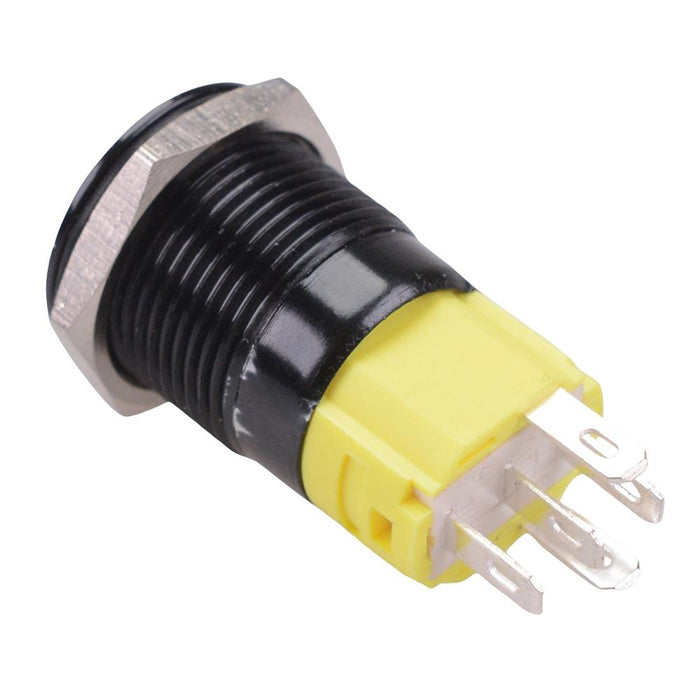

Vandal resistant push button switch manufactured from zinc, featuring a Green LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.
Momentary On-(On) action Green LED 12V illumination voltage IP65 protection rating 16mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 3A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Colour | Green |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 12VDC |
| Material | Zinc Alloy |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 16mm |
| Protection level | IP65 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
