Green LED On-(On) Momentary 19mm Vandal Push Switch NO/NC Power Symbol
SKU 482303
MPN: 482303
Availability:
599 in stock
Original price
£5.58
-
Original price
£5.58
Original price
£5.58
Inc VAT
£5.58
-
£5.58
Current price
£5.58
Inc VAT

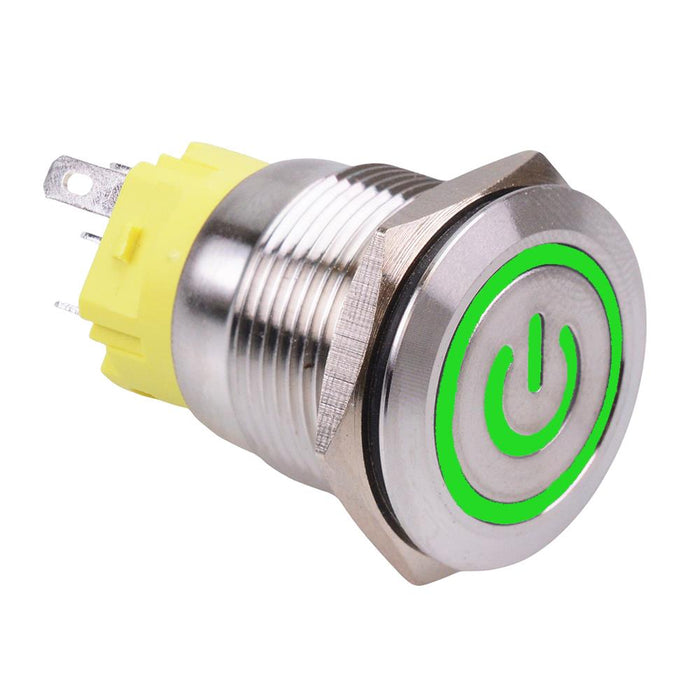

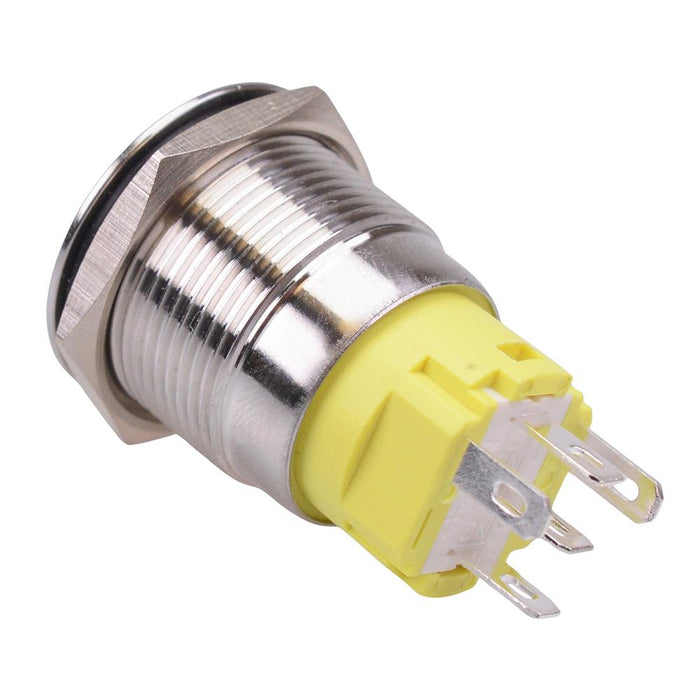

Momentary vandal resistant push button switch featuring a green 12V LED illuminated power symbol and NO / NC contacts. The switch is manufactured from metal and features IP67 protection rating making it suitable for a wide range of applications including automotive.
Momentary On-(On) action Green LED 12V illumination voltage IP67 protection rating 19mm panel cut-out diameter NO/NC contacts Solder terminals Rating: 5A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Colour | Green |
| Contact configuration | SPDT |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 19mm |
| Protection level | IP67 |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
