Green Momentary 22mm Flat Push Button Switch NO/NC
SKU 490303
MPN: HBY5E-11/G
Availability:
17 in stock
Original price
£4.20
-
Original price
£4.20
Original price
£4.20
£4.20
-
£4.20
Current price
£4.20

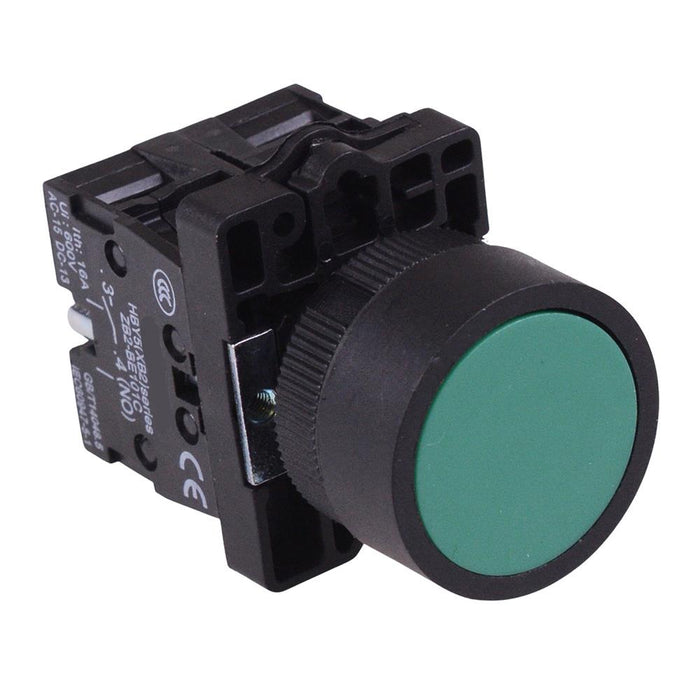

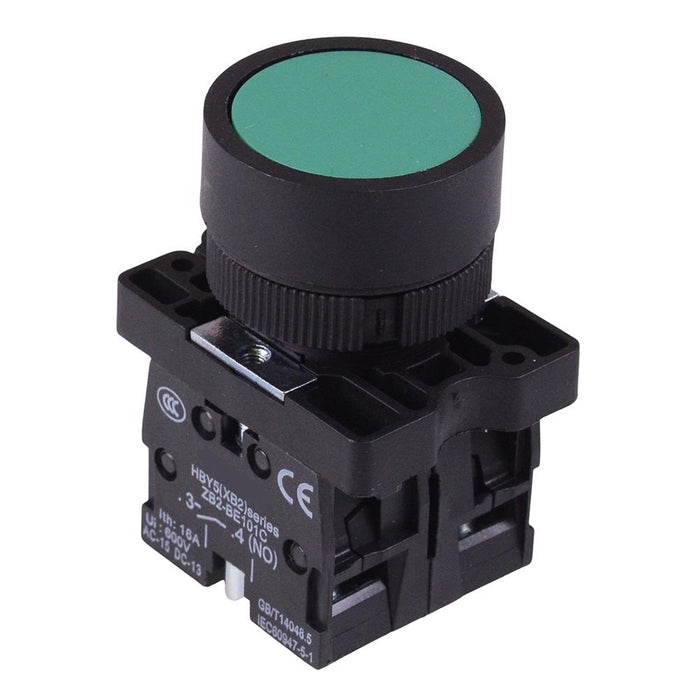

Green industrial push button switch featuring 1NO1NC contacts, suitable for 22mm panel cut-outs. The switch features 10A rated contact blocks and is terminated using the screw terminals. The switch is suitable for a wide range of industrial applications.
Corrosion resistant plastic construction Interchangeable contact blocks and operators Panel thickness: 5mm max Panel cut-out: 22mm Rated insulation voltage: 400V Rated thermal current: 10A 1NO and 1NC contacts Head diameter: 30mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | Green |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 10A 400V |
| Current Rating | 10A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 5mm |
| Terminal Type | Screw |
| Voltage Rating | 400V |
