Green Off-On LED Push Pull Switch 10A A3-30L3B-01-HH
by SCI
SKU 490835
MPN: A3-30L3B-01-HH GREEN
Availability:
200 in stock
Original price
£3.37
-
Original price
£3.37
Original price
£3.37
£3.37
-
£3.37
Current price
£3.37

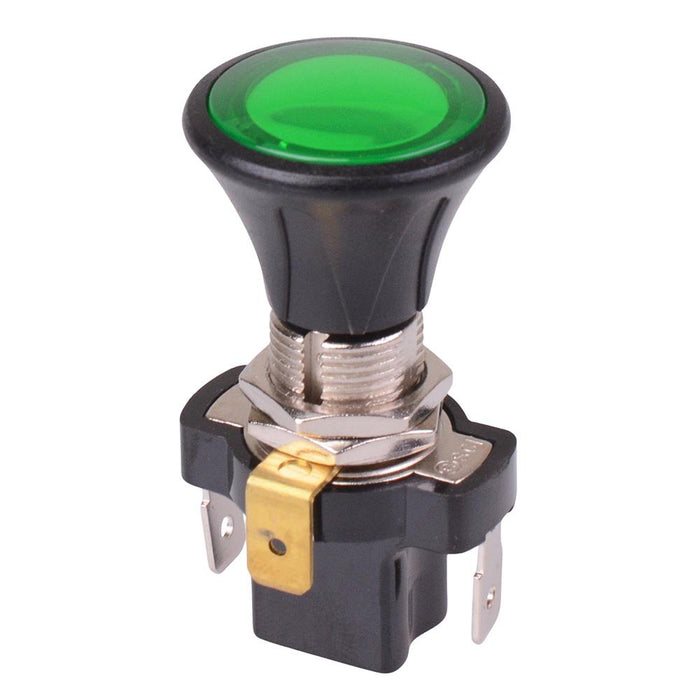

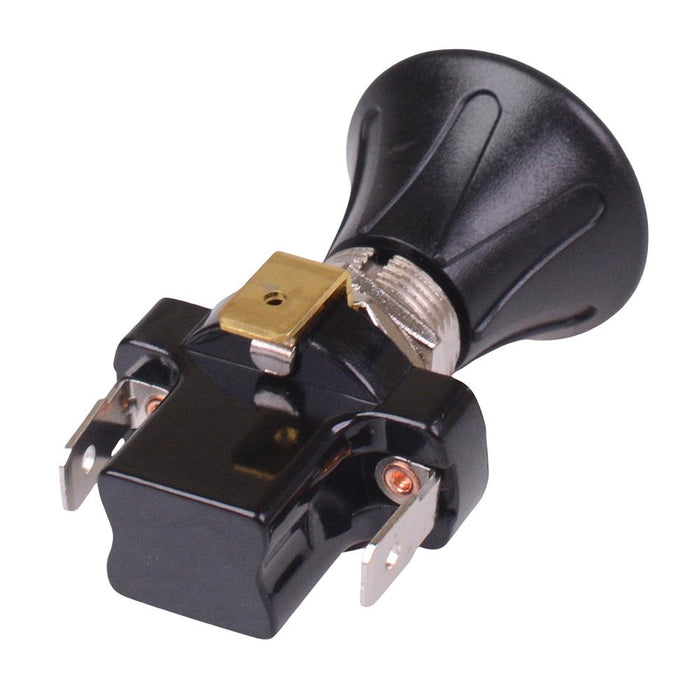

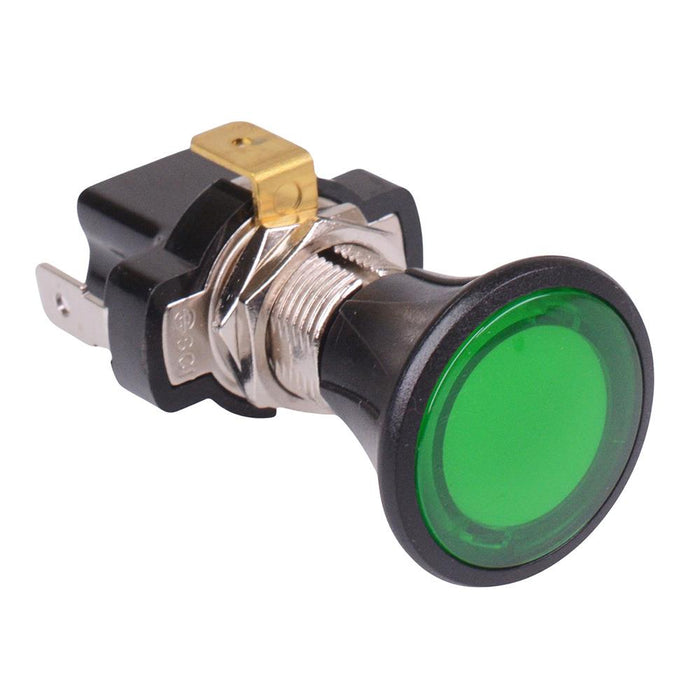

A3-30L3B circular push-pull switch featuring a large actuator with green LED. The switch features quick connect terminals and requires a 14.2mm cut-out, suitable for automotive and other 12V applications.
Green LED illuminates when ON SPST contacts Off-On operation 6.3mm quick connect terminals 14.2mm panel cut-out 6mm maximum panel thickness 10A 14VDC rating Dimensions: 55.3 x 30.6 x 28.5mm (height x length x width) SCI A3-30 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Material | Nickel Plated Brass |
| Contact Rating | 10A 14VDC |
| Current Rating | 10A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| Material | PF |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 14.2mm |
| Panel Thickness | 6mm Max |
| Product Series | A3-30 |
| Switch Operation | Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 14VDC |
