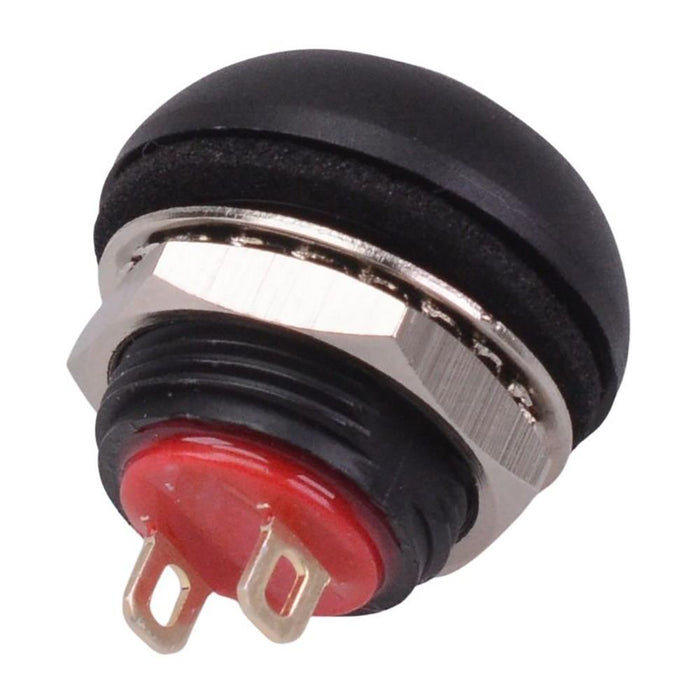

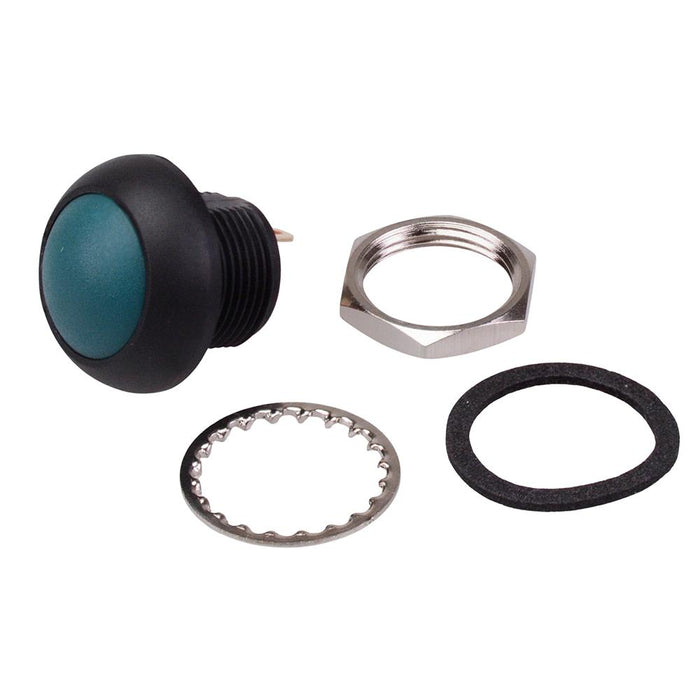

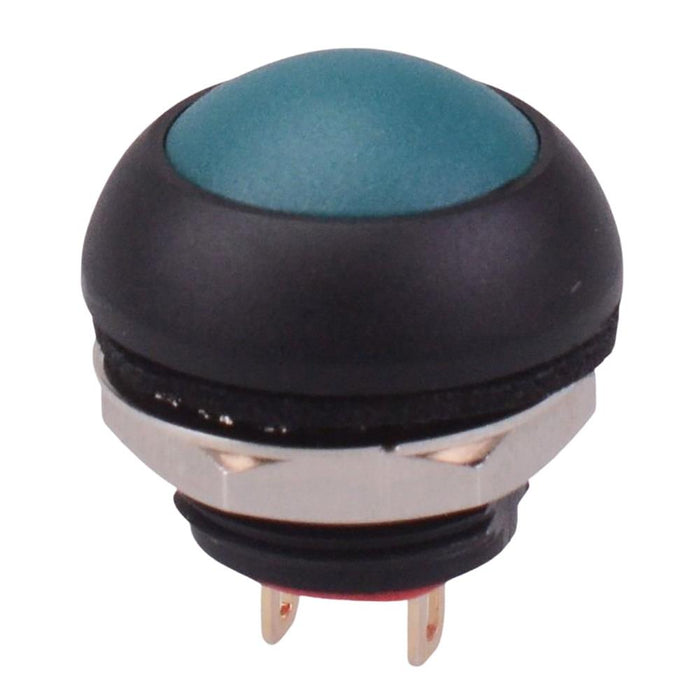

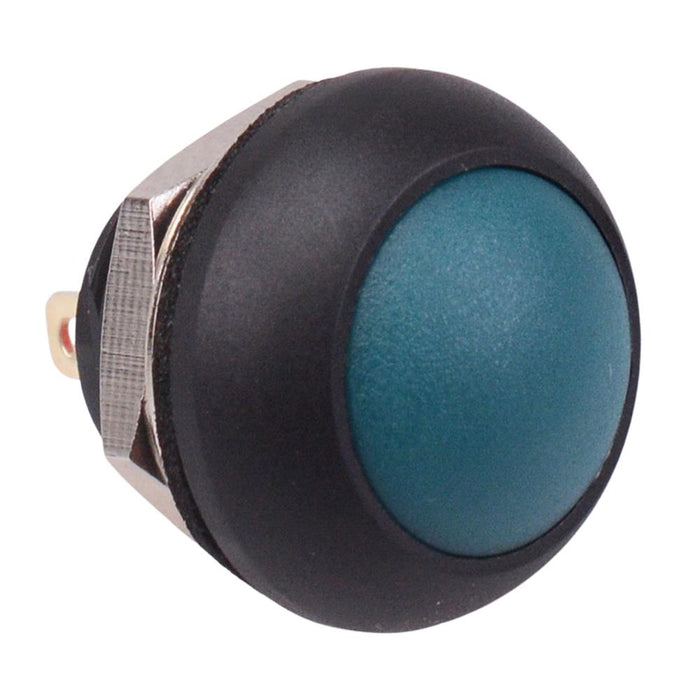

Green Off-(On) Momentary 12mm Round Push Button Switch SPST IP67
by Dailywell
SKU 490692
MPN: PAS6B2M1CASA6-5
Availability:
200 in stock
Original price
£2.76
-
Original price
£2.76
Original price
£2.76
£2.76
£2.76
-
£2.76
Current price
£2.76
Green miniature circular push button switch featuring SPST normally open contacts and IP67 protection rating. The switch features solder lug terminals and requires a 13.6mm panel cut-out. The 50VDC rating makes it ideal for a wide range of applications including automotive and marine.
Off-(On) operation SPST contacts Panel cut-out: 13.6mm Panel thickness: 1.5-4mm Protection level: IP67 Solder lug terminals Epoxy sealed Rating: 400mA 32VAC, 100mA 50VDC, 125mA 125VAC Dimensions: 20.5 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 100mA 50VDC, 125mA 125VAC |
| Current Rating | 100mA @ 50VDC |
| Electrical Life | 500,000 Cycles |
| Illuminated | No |
| Material | Polyamide 6/6 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | PA |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 50VDC, 125VAC |
