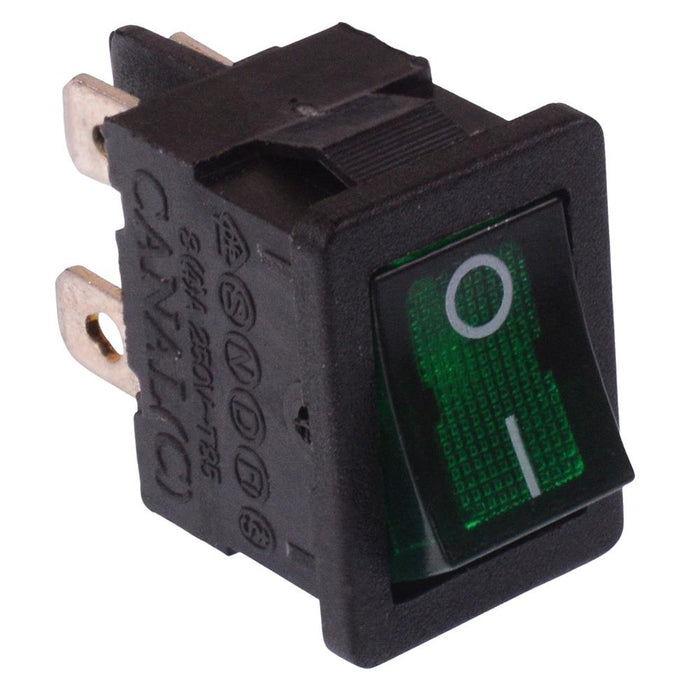

Green On-Off 110V illuminated Rectangle Rocker Switch DPST 10A
by Canal
SKU 487364
MPN: MR210C5LBG
Availability:
1198 in stock
Original price
£0.72
-
Original price
£0.72
Original price
£0.72
Inc VAT
£0.72
-
£0.72
Current price
£0.72
Inc VAT
Green On-Off illuminated rocker switch featuring a 19.2 x 13mm panel cut-out and DPST contacts. The switch features a 10A 250VAC rating and quick connect terminals, suitable for a wide range of applications.
DPST contacts Green 100-125VAC illumination On-Off function Rating: 6A 250VAC, 10A 125VAC Panel cut-out: 19.2 x 13mm Diameter: 21 x 15mm 4.8mm quick connect terminals
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | Green |
| Contact configuration | DPST |
| Contact material | Silver Alloy |
| Contact rating | 6A 250VAC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 100-125VAC |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 2 |
| Operating temperature | -20°C to +85°C |
| Panel cut out | 19.2 x 13mm |
| Panel thickness | 0.75-3mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
