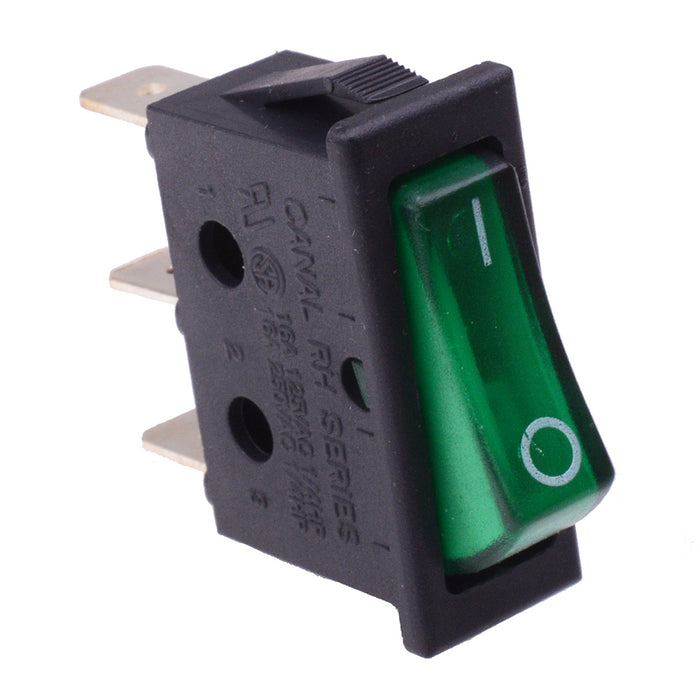

Green On-Off 110V illuminated Rocker Switch SPST 16A
by Canal
SKU 487997
MPN: RH110C5LBG
Availability:
200 in stock, ready to be shipped
Original price
£0.71
-
Original price
£0.71
Original price
£0.71
Inc VAT
£0.71
-
£0.71
Current price
£0.71
Inc VAT
Green On-Off rocker switch featuring neon illumination and SPST contacts. The switch features a 16A 250VAC rating and quick connect terminals, suitable for a wide range of applications.
SPST contacts On-Off function Green neon 100-125VAC illumination Rating: 16A 250VAC Panel cut-out: 11 x 30mm 6.35mm quick connect terminals
Specification
| Actuation | Latching |
| Colour | Green |
| Contact configuration | SPST |
| Contact material | Silver Alloy |
| Contact rating | 16A 250VAC |
| Current rating | 16A |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 100-125VAC |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Panel cut out | 30 x 11mm |
| Panel thickness | 0.75-3mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
