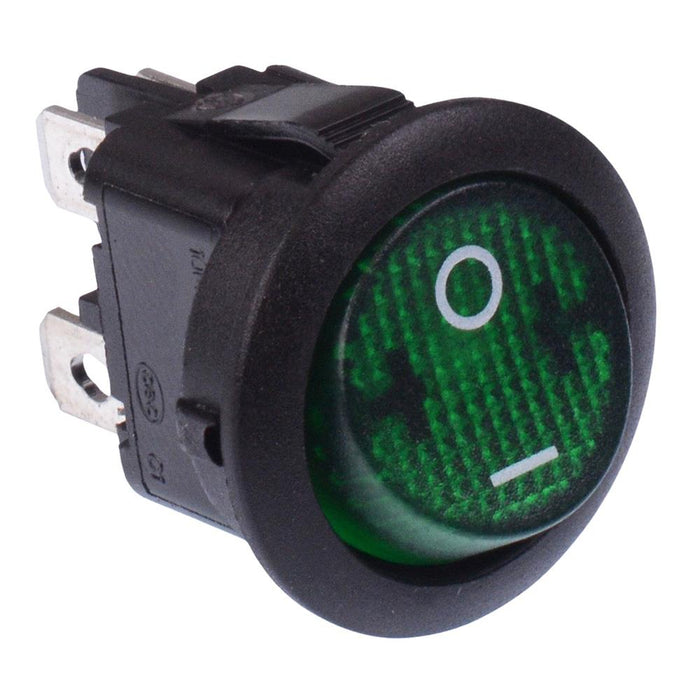

Green On-Off 230V illuminated Round Rocker Switch DPST 10A
by Canal
SKU 487231
MPN: MR210-R4G-BG1NWC
Availability:
4618 in stock
Original price
£0.63
-
Original price
£0.63
Original price
£0.63
£0.63
-
£0.63
Current price
£0.63
Green On-Off illuminated rocker switch featuring a 20.2mm panel cut-out and SPST contacts. The switch features a 10A 250VAC rating and quick connect terminals, suitable for a wide range of applications.
SPST contacts Green 200-250VAC illumination On-Off function Rating: 6A 250VAC, 10A 125VAC Panel cut-out: 20.2mm Diameter: 23mm 4.8mm quick connect terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Green |
| Contact Configuration | DPST |
| Contact Material | Silver Alloy |
| Contact Rating | 6A 250VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 200-250VAC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
