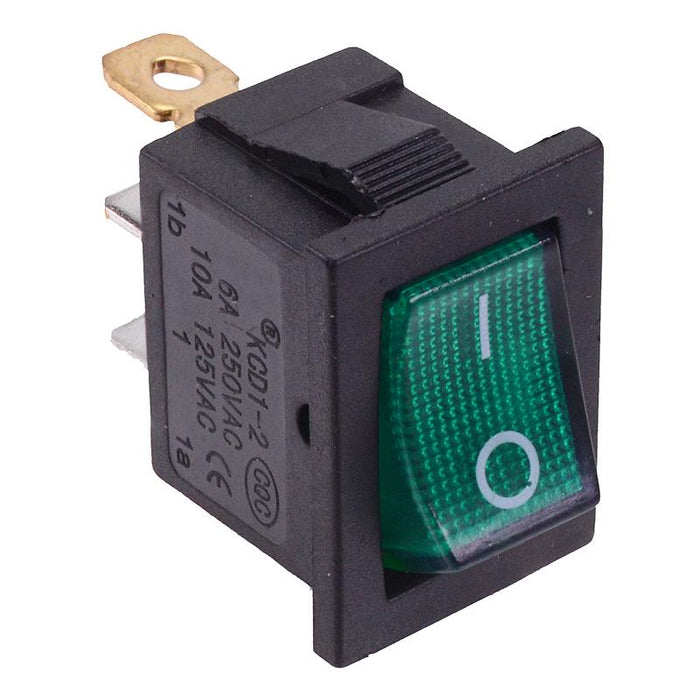

Green On-Off illuminated Rectangle Rocker Switch SPST 230V
SKU 482809
MPN: 482809
Availability:
265 in stock, ready to be shipped
Original price
£0.61
-
Original price
£0.61
Original price
£0.61
Inc VAT
£0.61
-
£0.61
Current price
£0.61
Inc VAT
Green 230V illuminated rectangle rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of domestic and commerical applications.
On-Off action SPST contacts 230V illumination 4.8mm quick connect terminals Panel cut-out: 19.2 x 13mm Dimensions: 25 x 21 x 15mm (Height x Length x Width) Rating: 10A 125VAC, 6A 250VAC
Specification
| Actuation | Latching |
| Colour | Green |
| Contact configuration | SPST |
| Contact rating | 6A 250VAC, 10A 125VAC |
| Current rating | 10A @ 125VAC |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 230VAC |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19.2 x 13mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
