Green On-Off Latching 12mm Red LED Push Button Switch IP65 SPST

SKU 490277

MPN: HBGQ12B-10DZ/J/PA/G/3V/R

Availability:
90 in stock
Original price £3.52 - Original price £3.52
Original price
£3.52
£3.52 - £3.52
Current price £3.52

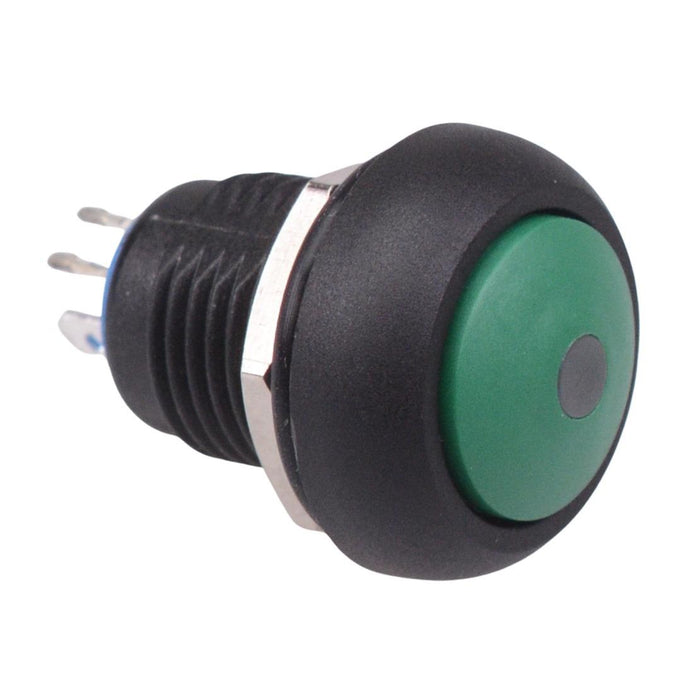

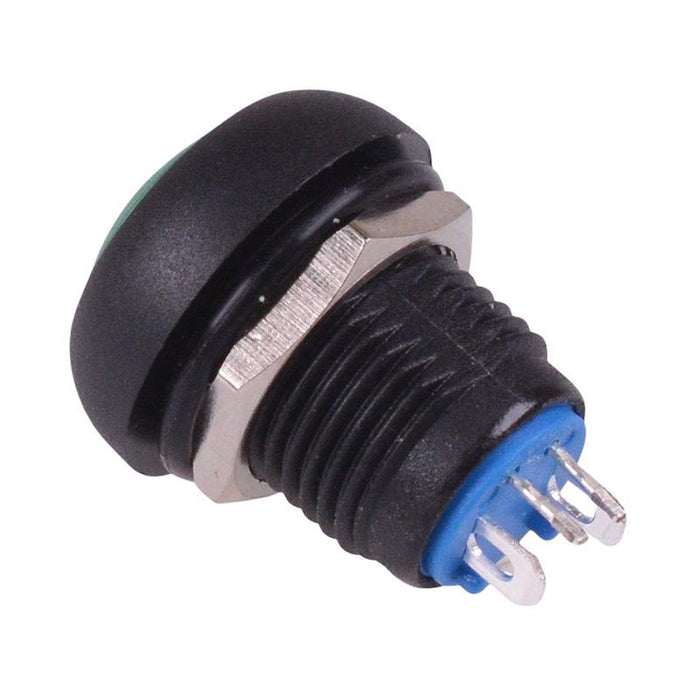

Green latching push button switch featuring a round actuator and red LED. The switch features IP65 protection rating and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

  • Latching operation
  • SPST contacts
  • IP65 protection rating
  • 2.8x0.5mm quick connect terminals
  • LED voltage: 3V
  • Rated current: 20mA
  • Panel cut-out: 12mm
  • Panel thickness: 6mm max
  • Rating: 2A 250V
  • Dimensions: 24.75 x 18mm (height x diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Colour Green
    Contact Configuration SPST
    Contact Rating 2A 250VAC
    Current Rating 2A
    Electrical Life 50,000 Cycles
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 3VDC
    Material PA66
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -25°C to +65°C
    Panel Cut Out 12mm
    Panel Thickness 6mm Max
    Protection Level IP65
    Switch Operation On-Off
    Terminal Type Quick Connect
    Voltage Rating 250VAC
