Green On-Off-On illuminated Rectangle Rocker Switch DPDT 230V
SKU 482827
MPN: 482827
Availability:
235 in stock
Original price
£1.02
-
Original price
£1.02
Original price
£1.02
Inc VAT
£1.02
-
£1.02
Current price
£1.02
Inc VAT

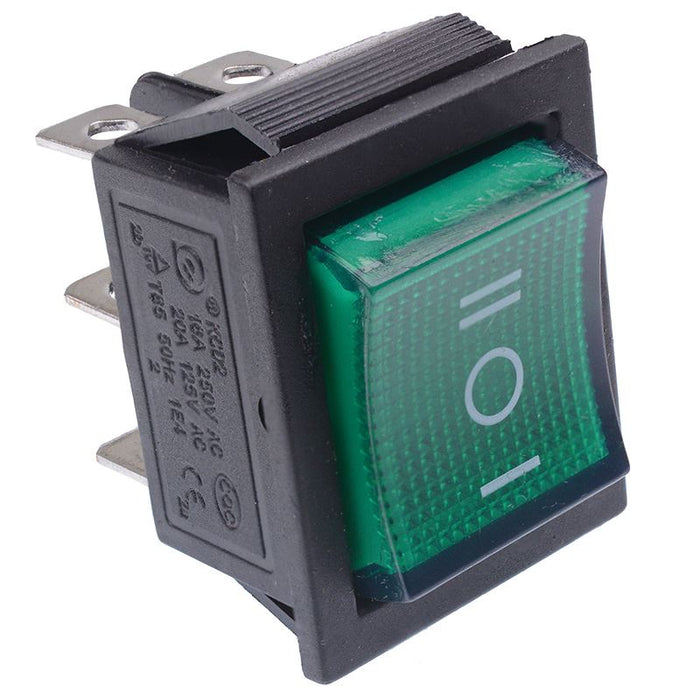

Green illuminated rectangle rocker switch featuring DPDT contacts and On-Off-On action. The switch features quick connect terminals and is suitable for domestic, industrial and commercial applications.
Green illumination On-off-on action DPDT contacts 220VAC illumination 6.3mm quick connect terminals 28.5 x 21.5mm panel cut-out Rating: 20A 125VAC, 16A 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Colour | Green |
| Contact configuration | DPDT |
| Contact rating | 16A 250VAC, 20A 125VAC |
| Current rating | 20A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 230VAC |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 28.5 x 21.5mm |
| Switch operation | On-Off-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
