Green On-(On) Momentary 220V Push Button Switch SPDT

SKU 485012

MPN: 485012

Back Order Availability: 30 Days

106 in stock, ready to be shipped
Original price £6.75 - Original price £6.75
Original price
£6.75 Inc VAT
£6.75 - £6.75
Current price £6.75 Inc VAT

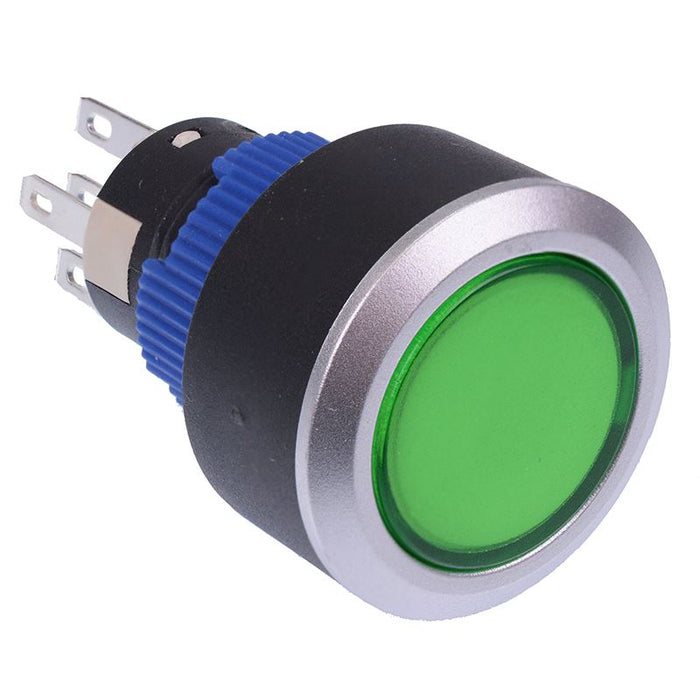

Green On-(On) momentary push button switch featuring SPDT contacts and LED illumination. The switch features a silver bezel and is suitable for panel mount applications requiring a 22mm diameter switch.

  • Green LED
  • illumination voltage: 220V
  • Panel cut-out diameter: 22mm
  • SPDT contacts
  • IP65 protection level
  • Rating: 3A 250VAC
  • Specification
    Actuation Momentary
    Back order lead time 30 Days
    Contact configuration 1NO-1NC
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Green
    Illumination voltage 220VAC
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22mm
    Panel thickness 6mm
    Protection level IP65
    Switch operation On-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
