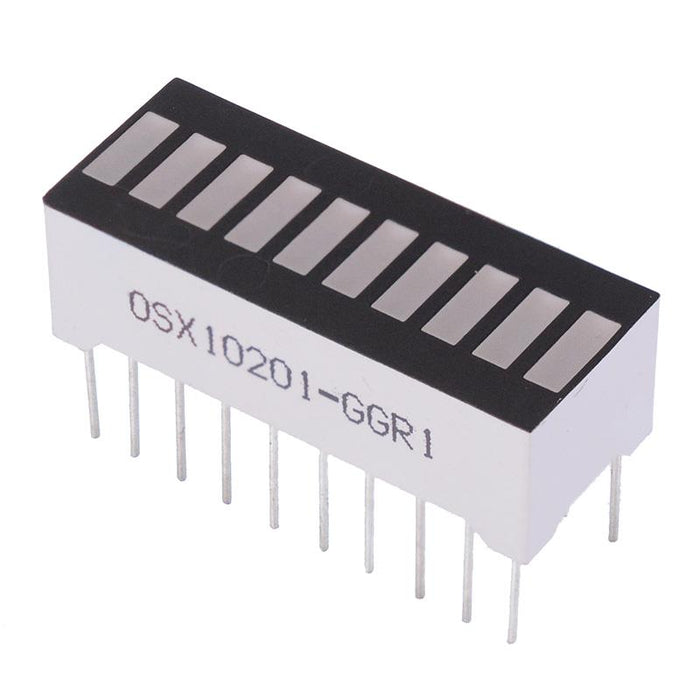

Green / Red 10-Segment LED Bar Array Display

SKU 485653

MPN: OSX10201-GGR1

Out of stock
Sold out
Original price £1.06 - Original price £1.06
Original price
£1.06 Inc VAT
£1.06 - £1.06
Current price £1.06 Inc VAT
Green and red 10 segment LED bar array featuring excellent visibility and contrast. The LEDs provide a consistent brightness throughout the display and feature a long life making them suitable for indication and overflow applications.

  • First 7 bars are green, last 3 are red
  • White bar on a black face
  • Can be end stacked to form longer lengths
  • Bar size: 5.0 x 1.74mm
  • Low current
  • Dimensions: 25.5 x 10.2 x 7.9mm
  • Specification
    Back order lead time 45 Days
    Colour Green / Red
    Depth 10.2mm
    Forward current 25mA
    Forward voltage 2.1V
    Height 7.9mm
    Lens colour White Diffused
    Luminous intensity 35mcd
    Mounting style Through Hole
    Number of pins 20
    Operating temperature -30°C to +70°C
    Package 25.5 x 10.2mm
    Packaging Bulk
    Power dissipation 62.5mW
    Wavelength Red 632nm, Green 570nm
    Width 25.5mm
