Green Round Latching 16mm Push Button Switch NO/NC 12V

SKU 486804

MPN: 486804

Availability:
Only 4 left!
Original price £3.51 - Original price £3.51
Original price
£3.51
£3.51 - £3.51
Current price £3.51

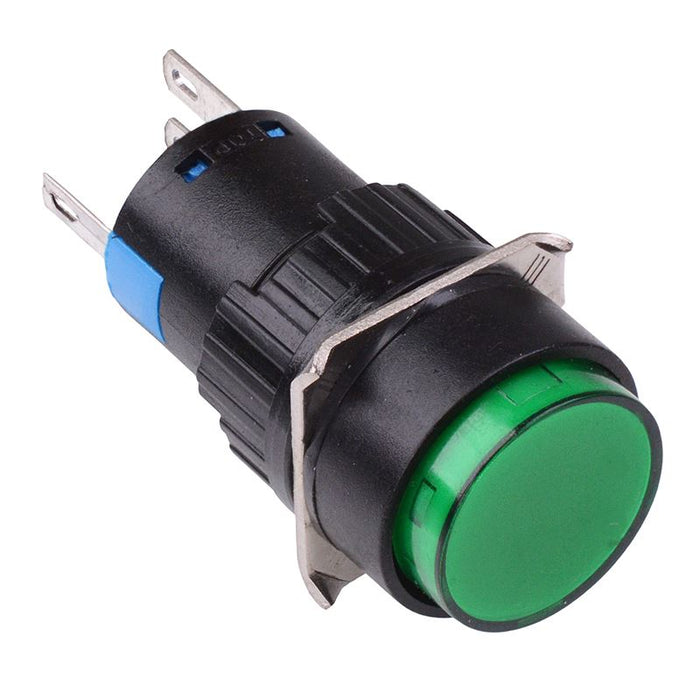

Green latching push button switch featuring a round illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, automotive etc.

  • Green 12V illumination
  • NO/NC contacts
  • Solder terminals
  • Maximum voltage: 250VAC/DC
  • Maximum current: 5A
  • Panel cut-out: 16mm
  • Protection level: IP65
  • Button size: 15.4mm
  • Dimensions: 40.3 x 18mm
  • Specification
    Actuation Latching
    Back Order Lead Time 30 Days
    Colour Green
    Contact Configuration SPST
    Contact Material Silver Plated
    Contact Rating 5A 250VAC/DC
    Current Rating 5A
    Electrical Life 100,000 Cycles
    Illuminated Yes
    Illumination Colour Green
    Illumination Voltage 12VDC
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -25°C to +55°C
    Panel Cut Out 16mm
    Protection Level IP65
    Switch Operation On-Off
    Terminal Type Solder
    Voltage Rating 250VAC
