Green Square PCB Keyboard Switch SPST
SKU 481907
MPN: 481907
Availability:
932 in stock
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
Inc VAT
£0.59
-
£0.59
Current price
£0.59
Inc VAT

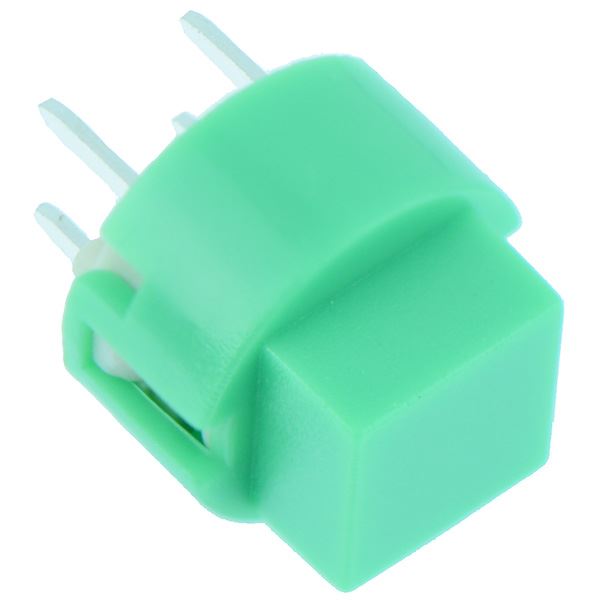

Green square miniature keyboard switch featuring SPST contacts suitable for direct PCB mounting.
Colour: green Voltage rating: 30V DC Current rating: 30mA Button height: 4.4mm Button travel: 0.7mm Operating force: 200±50gf Dimensions: 15.2 x 12.0mm (height x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Colour | Green |
| Contact configuration | SPST |
| Contact rating | 30mA 30VDC |
| Current rating | 30mA |
| Illumination colour | Non Illuminated |
| Mounting style | PCB |
| Number of positions | 2 |
| Operating force | 200gf |
| Operating temperature | +10°C to +60°C |
| Pitch | 5.2mm |
| Switch operation | Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 30VDC |
