HE2G-21SH Double Contact 3-Position Basic Grip Switch IDEC
by IDEC
SKU 490196
MPN: HE2G-21SH
Availability:
Only 4 left!
Original price
£285.21
-
Original price
£285.21
Original price
£285.21
£285.21
-
£285.21
Current price
£285.21

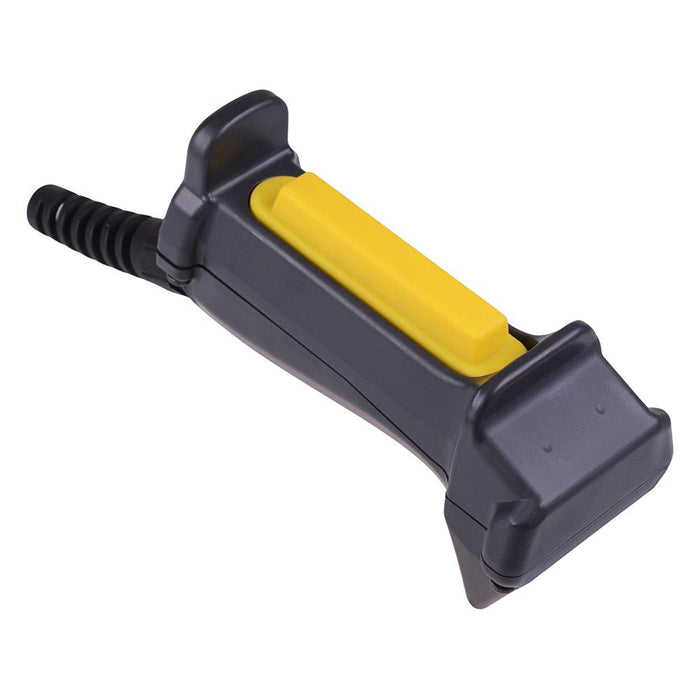

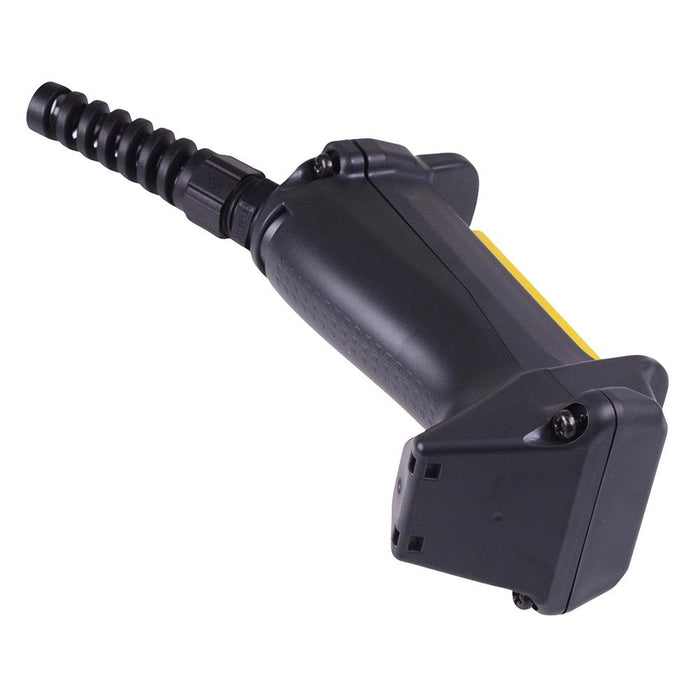

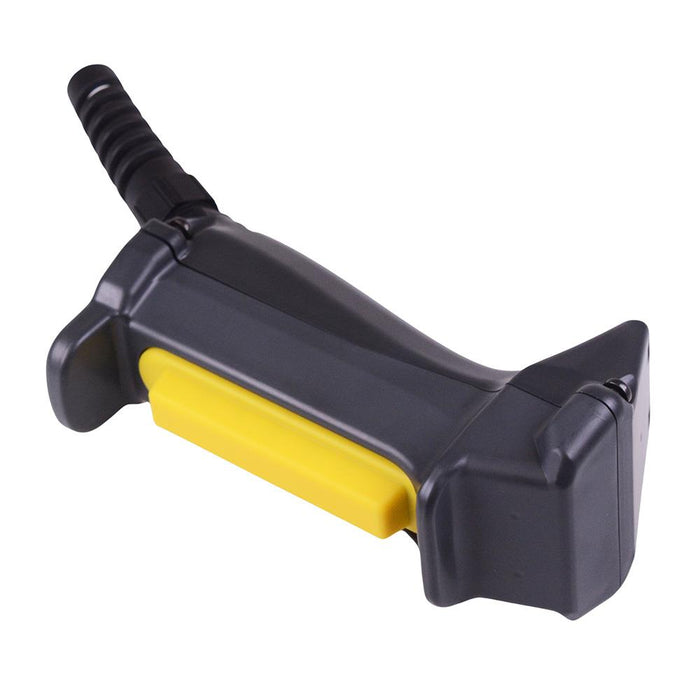

The HE2G-21SH is a grip style three position enabling switch featuring an ergonomic design and light-weight package. The enabling switch features dual contacts ensuring a high level of safety and distinctive tactile feedback allowing easy recognition of the switch operation. The Off-On-Off functionality provides a high level of safety based on human behavioural studies which determine personnel may squeeze OR let go when presented with a panic situation. The compact design is comfortable in your hand and suitable for operators with small hands and in tight spaces. The grip is suitable for use as a 'Deadman switch' for operators in robotic applications.
Off-On-Off enabling switch with 2 contacts With monitor switch 1NC Yellow silicone rubber boot Solder terminals IP67 protection rating Rated insulation voltage: 250V Rated thermal current: 3A Applicable multicore cable diameter: 4.5 to 10mm
Specification
Actuation | Momentary |
Back Order Lead Time | 130 Days |
Contact Configuration | DPDT |
Contact Rating | 1A 250V |
Current Rating | 1A |
Illuminated | No |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 3 |
Product Series | HE2G |
Protection Level | IP67 |
Switch Operation | Off-On-Off |
Terminal Type | Solder |
Voltage Rating | 250V |
