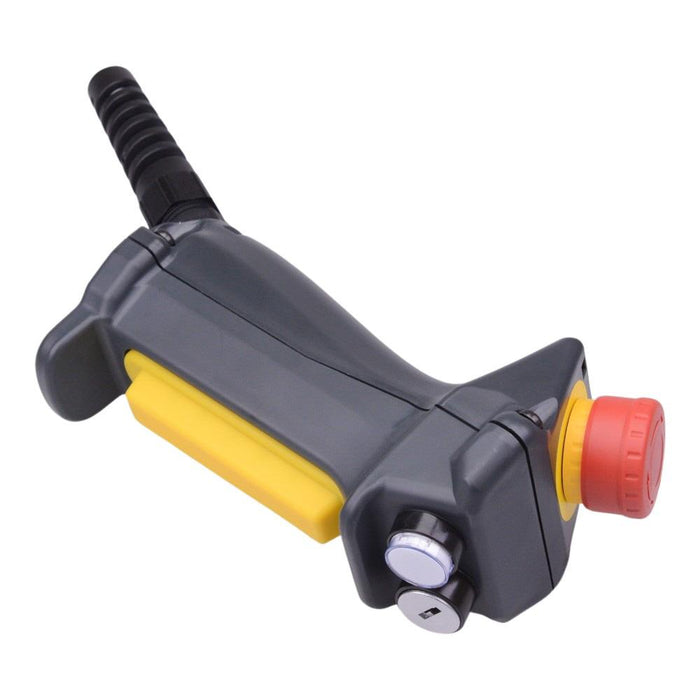

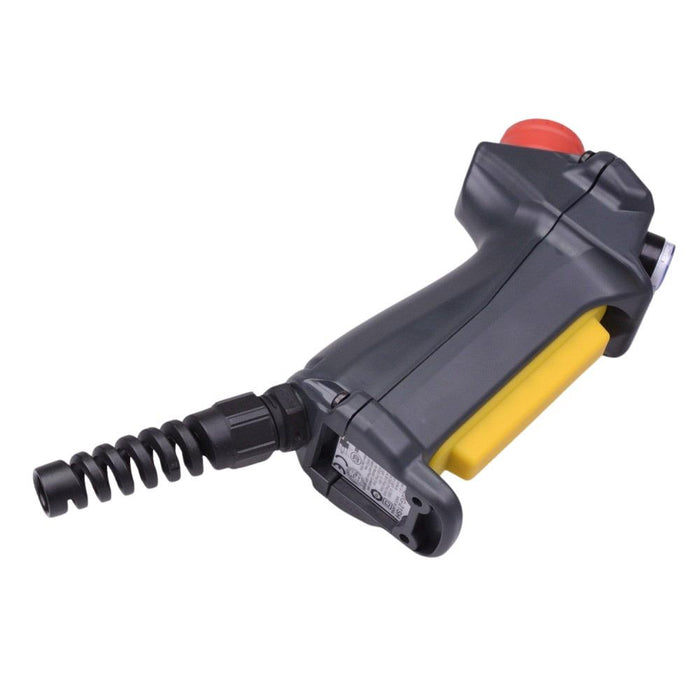

HE2G-21SHE-L-K Double Contact 3-Position Grip Switch Key Pushbutton Emergency Stop IDEC

by IDEC
SKU 490198

MPN: HE2G-21SHE-L-K

Availability:
Only 4 left!
Original price £391.01 - Original price £391.01
Original price
£391.01
£391.01 - £391.01
Current price £391.01
The HE2G-21SHE-L-K is a grip style three position enabling switch featuring an ergonomic design and light-weight package. The enabling switch features dual contacts ensuring a high level of safety and distinctive tactile feedback allowing easy recognition of the switch operation. The Off-On-Off functionality provides a high level of safety based on human behavioural studies which determine personnel may squeeze OR let go when presented with a panic situation. The compact design is comfortable in your hand and suitable for operators with small hands and in tight spaces. The grip is suitable for use as a 'Deadman switch' for operators in robotic applications.

  • Off-On-Off enabling switch with 2 contacts
  • With monitor switch 1NC
  • With emergency stop switch 2NC
  • With key selector switch DPDT
  • With momentary pushbutton DPDT
  • Yellow silicone rubber boot
  • Solder terminals
  • IP65 protection rating
  • Rated insulation voltage: 250V
  • Rated thermal current: 3A (5A emergency stop switch)
  • Applicable multicore cable diameter: 4.5 to 10mm
  • Specification
    Actuation Momentary
    Back Order Lead Time 130 Days
    Contact Configuration DPDT
    Contact Rating 1A 250V
    Current Rating 1A
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 3
    Product Series HE2G
    Protection Level IP65
    Switch Operation Off-On-Off
    Terminal Type Solder
    Voltage Rating 250V
