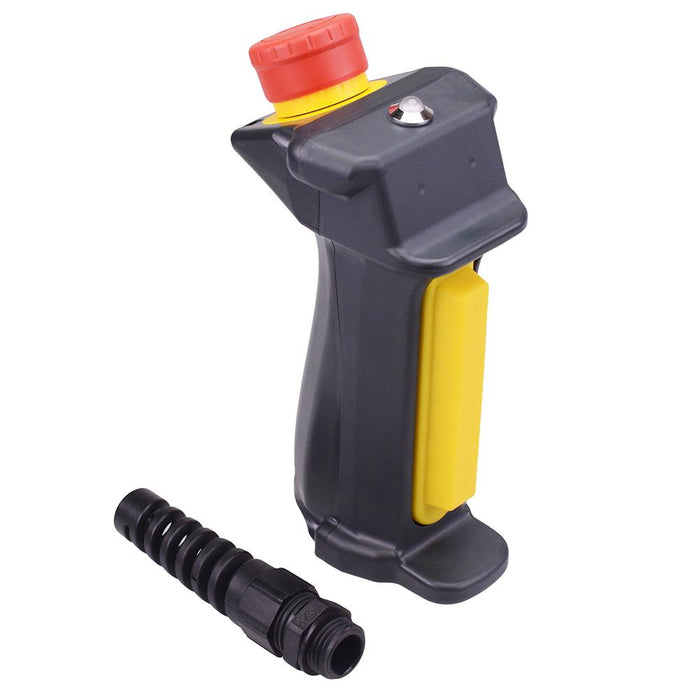

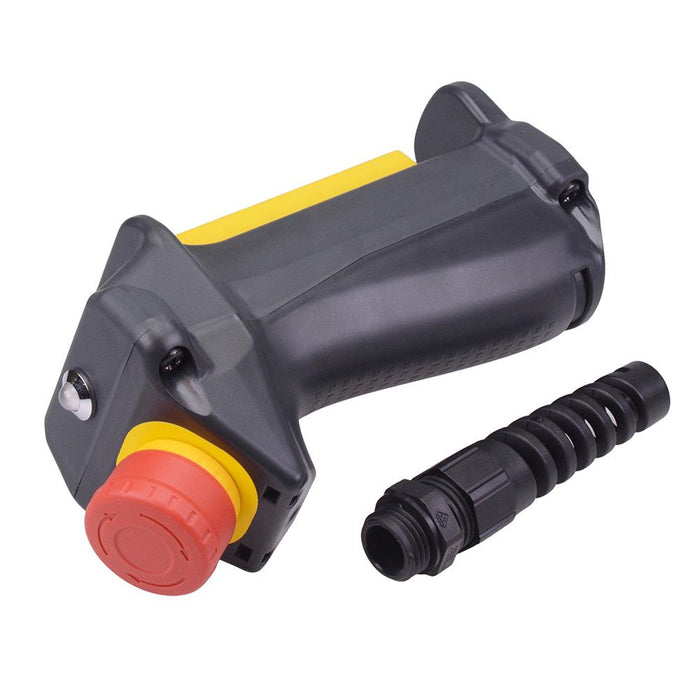

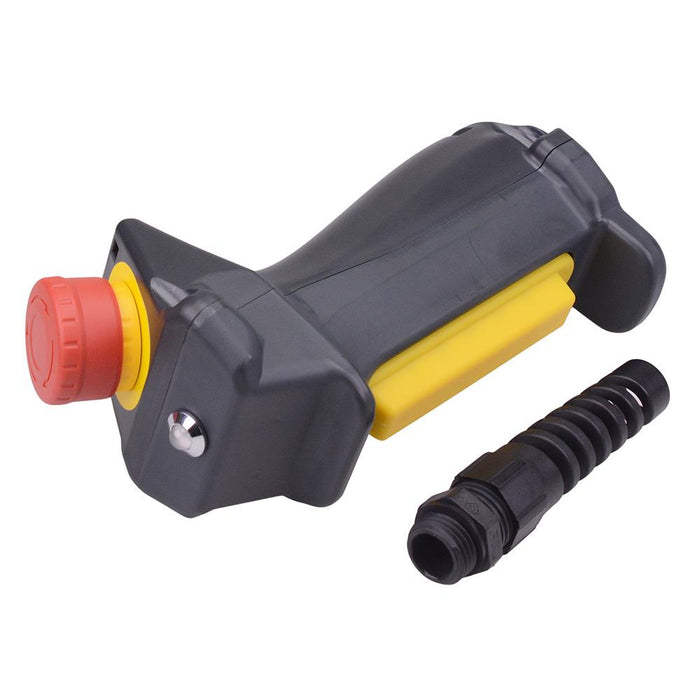

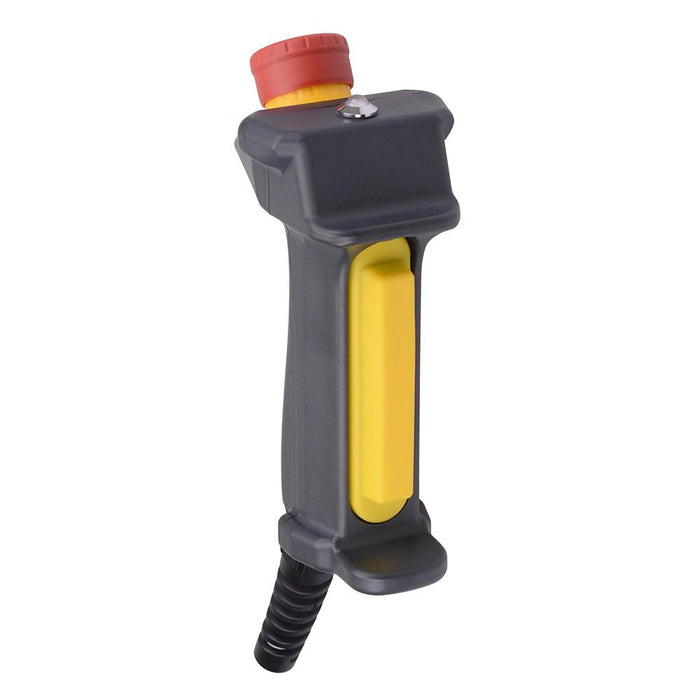

HE2G-21SHE-P-0 Double Contact 3-Position Grip Switch Pilot Emergency Stop IDEC

The HE2G-21SHE-P-0 is a grip style three position enabling switch featuring an ergonomic design and light-weight package. The enabling switch features dual contacts ensuring a high level of safety and distinctive tactile feedback allowing easy recognisation of the switch operation. The Off-On-Off functionality provides a high level of safety based on human behavioral studies which determine personnel may squeeze OR let go when presented with a panic situation. The compact design is comfortable in your hand and suitable for operators with small hands and in tight spaces. The grip is suitable for use as a 'Deadman switch' for operators in robotic applications.

Off-On-Off enabling switch with 2 contacts

With monitor switch 1NC

With emergency stop switch 2NC

With green pilot light

Solder terminals

IP65 protection rating

Rated insulation voltage: 250V

Rated thermal current: 3A (5A emergency stop switch)

Applicable multicore cable diameter: 4.5 to 10mm
