Heavy Duty Battery Isolator Switch 500A 48VDC
SKU 491255
MPN: SF54107-2
Availability:
22 in stock
Original price
£30.84
-
Original price
£30.84
Original price
£30.84
£30.84
£30.84
-
£30.84
Current price
£30.84

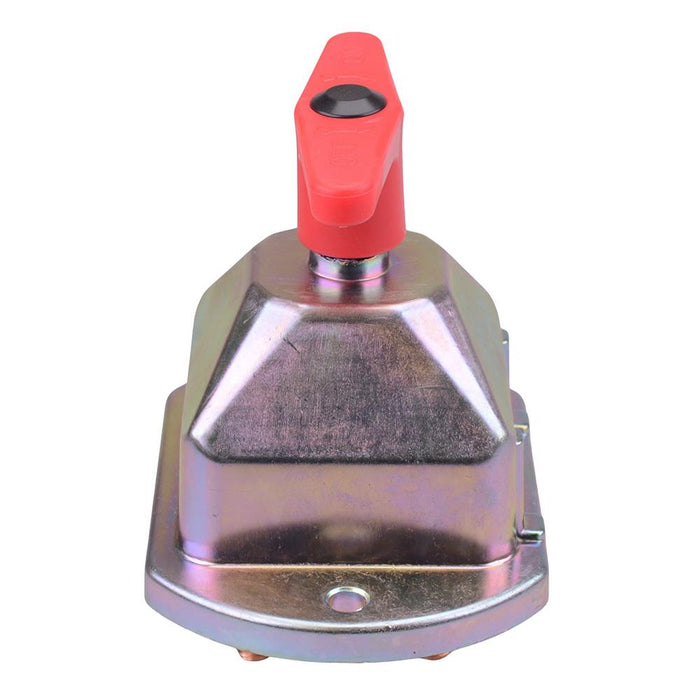

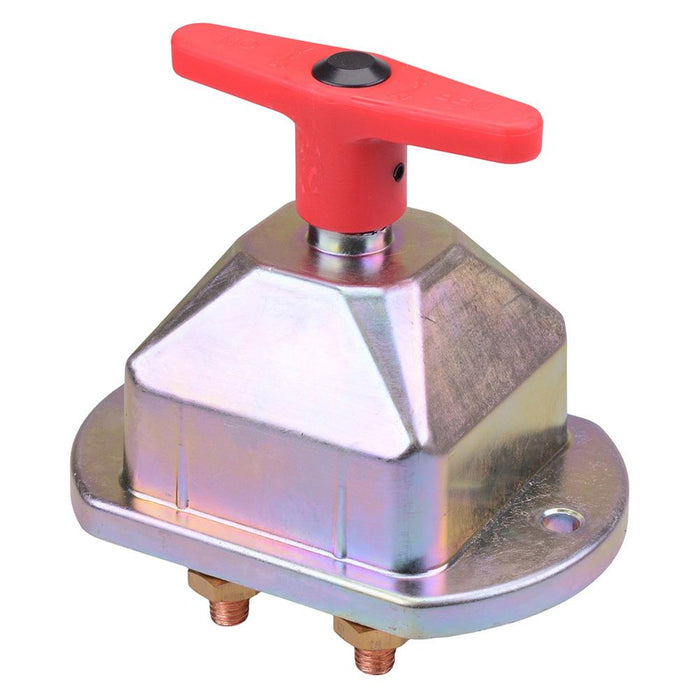

Heavy duty battery isolator switch featuring a metal construction and rotary handle. The switch features M12 stud terminals and is rated up to 500A continuous and 2500A cranking. The switch is suitable for automotive, plant and marine applications.
On-Off operation Voltage rating: 48VDC Continuous current rating: 500A Crank current rating: 2500A Terminals: M12 studs Protection leve: IP65 Mounting holes diameter: 8.5mm Mounting holes 110mm apart
Specification
| Back Order Lead Time | 120 Days |
| Continuous Rating | 500A |
| Current Rating | 500A |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Protection Level | IP65 |
| Switch Operation | Off-On |
| Terminal Type | M12 Studs |
| Voltage Rating | 48VDC |
