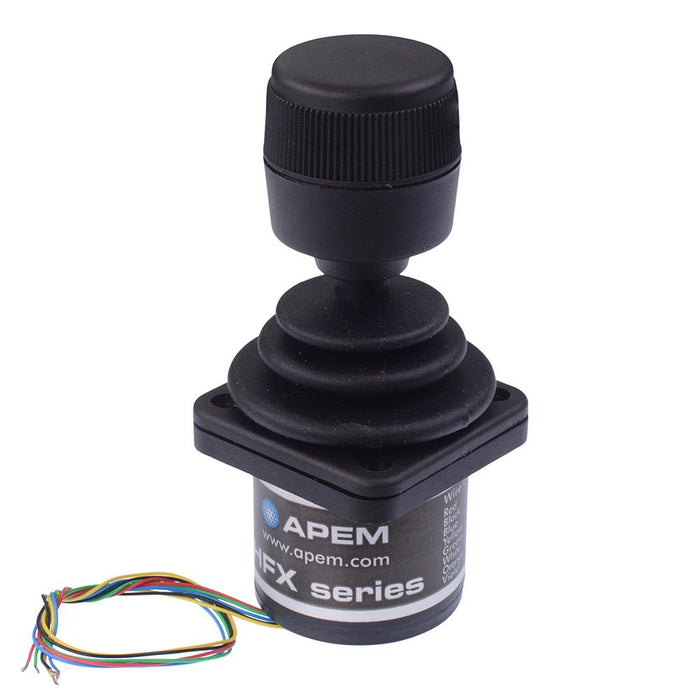

HFX33R10 APEM 3 Axis Fingertip Hall Effect Joystick

by APEM
SKU 487768

MPN: HFX33R10

Back Order Availability: 10 Days

Availability:
Only 1 left!
Original price £203.09 - Original price £203.09
Original price
£203.09 Inc VAT
£203.09 - £203.09
Current price £203.09 Inc VAT
The HFX33R10 joystick is designed for precision finger operated applications requiring proportional control and long trouble-free life. Featuring 3 axis and non-contacting hall effect technology for three million lifecycle performance. Featuring CH Products core hall effect technology and patented joystick mechanism, the HFX series has been field tested and proven for more than a dozen years. The HFX series joysticks compact size, low operational force and high reliability make it ideally suited for clean environment applications including coordinate measuring machines, CCTV equipment and broadcast camera control.

  • 3 axis
  • IP68 sealing above panel
  • Rated for 3 million lifecycles
  • Round limiter plate
  • Drop-in mounting
  • Supply voltage: 5VDC
  • Output: 0V to 5V (Rail to Rail)
  • Panel cut-out: 41.66mm
  • Mounting hole pitch: 35.56 x 35.56mm
  • Dimensions: 48.51 x 48.51 x 108.46mm (length x width x height)
  • Specification
    Back order lead time 10 Days
    Handle Round
    Joysticktravel ±18°
    Mechanical life 3,000,000 Cycles
    Numberofaxis 3
    Operating temperature -25°C to +70°C
    Protection level IP68
    Technology Hall Effect
    Terminal type Tail Leads
