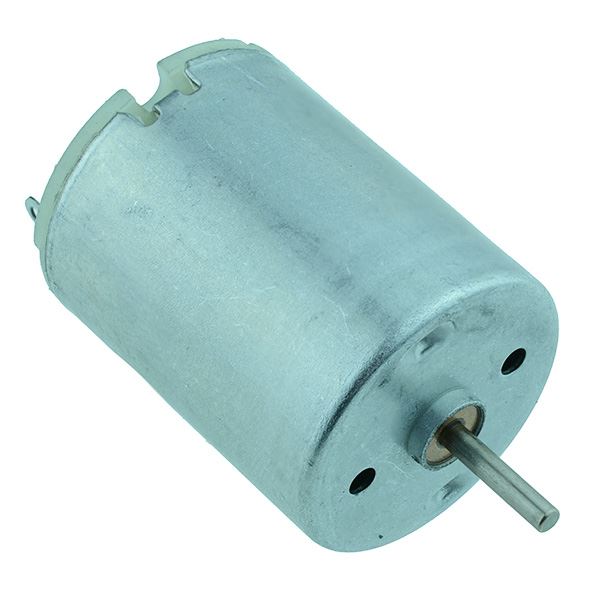

High Torque Round DC Motor 1.5V to 6.0V 9600rpm

SKU 480854

MPN: 480854

Availability:
1011 in stock
Original price £1.34 - Original price £1.34
Original price
£1.34 Inc VAT
£1.34 - £1.34
Current price £1.34 Inc VAT
High torque miniature DC motor with a 1.5V to 6.0V operating range and 9600rpm speed, suitable for educational and model applications.

  • Nominal voltage: 3.0V
  • Operating voltage: 1.5-6.0V
  • No load speed: 9600rpm
  • No load current: 0.25A
  • Speed at maximum efficiency: 7790rpm
  • Current at maximum efficiency: 1.14A
  • Output: 1.58W
  • Dimensions: 30.5 x 24mm (Length x Diameter)
  • Shaft size: 10 x 2mm (Length x Diameter)
  • Specification
    Back order lead time 120 Days
    Diameter 24mm
    Length 30.5mm
    No load current 0.25A
    No load speed 9600rpm
    Operating voltage 1.5-6V
    Rated load current 1.14A
    Rated load speed 7790rpm
    Rated voltage 3V
    Shaft diameter 2.0mm
    Shaft length 10mm
