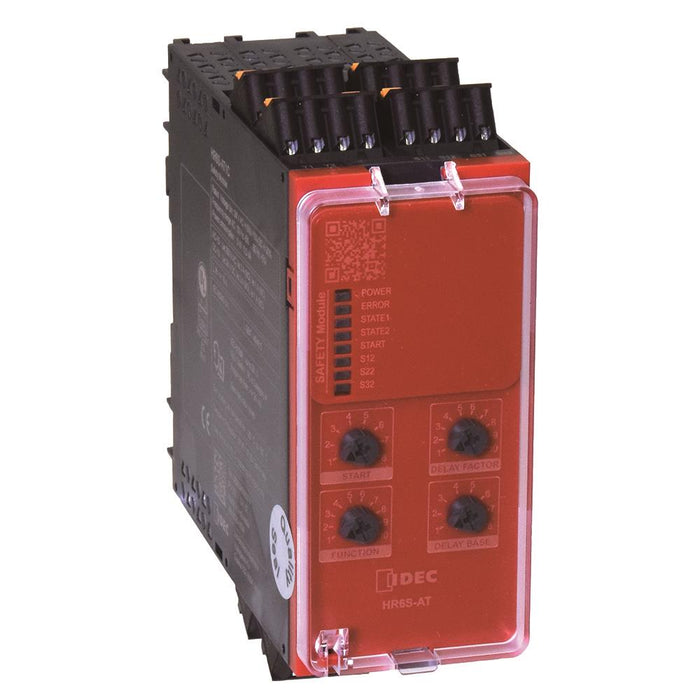

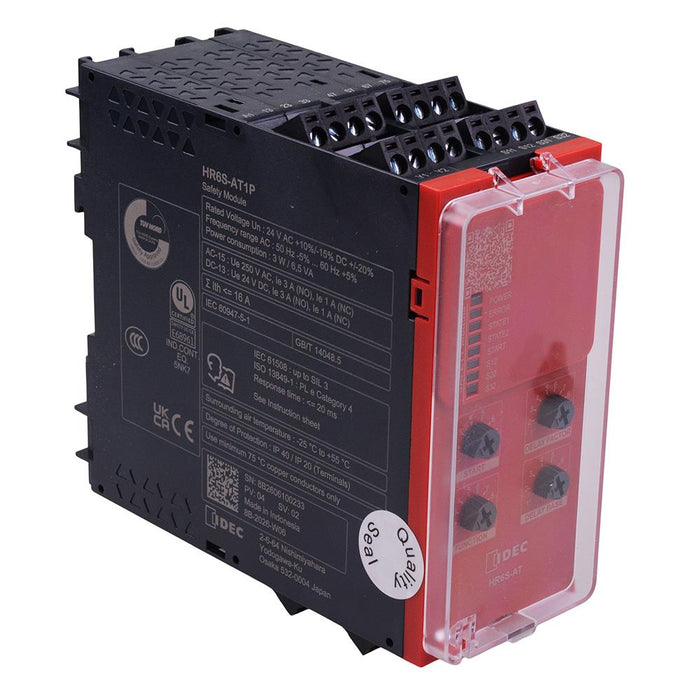

HR6S-AT1P Safety Relay Module DIN Rail 24VAC/DC IDEC

The HR6S-AT1P is a high performance IoT-ready safety relay module designed to bridge the gap between robust machine safeguarding and smart manufacturing. By integrating advanced diagnostic capabilities with unparalleled flexibility, the HR6S series doesn't just protect your operators, it keeps your entire production line running efficiently. The module protects both the operator and the machine by immediately stopping dangerous movements (stop category 0) when instructed to stop by the operator or or when a failure in the safety circuit is detected. Also, the safety module is equipped with a stop category 1 delay output, which allows the motor to stop after deceleration.

Safety relay modules for IoT

The selector on the front can be used to set the delay time to a value from 0.1 seconds to 15 minutes (Can also be set to 0 seconds)

The delay output can be canceled by the S21-S22 or S31-S32 terminal (vacant terminal), and the delay output is immediately cut off when canceled

Advanced diagnostic and output functions: Predictive maintenance

Connect to various input devices using a switch dial: setting a start function, setting an application function

A sealing strip to secure the protective cover is included, preventing the dials from being accidentally moved or settings from being changed

Outputs can be expanded

LED display for viewing status at a glance

Delay function

Screw terminals

Number of relay contacts: 3 normally open instantaneous, 3 normally open delayed, 1 normally closed delayed

Maximum continuous current, normally open relay contacts: 6A

Maximum continuous current, normally closed relay contacts: 3A
