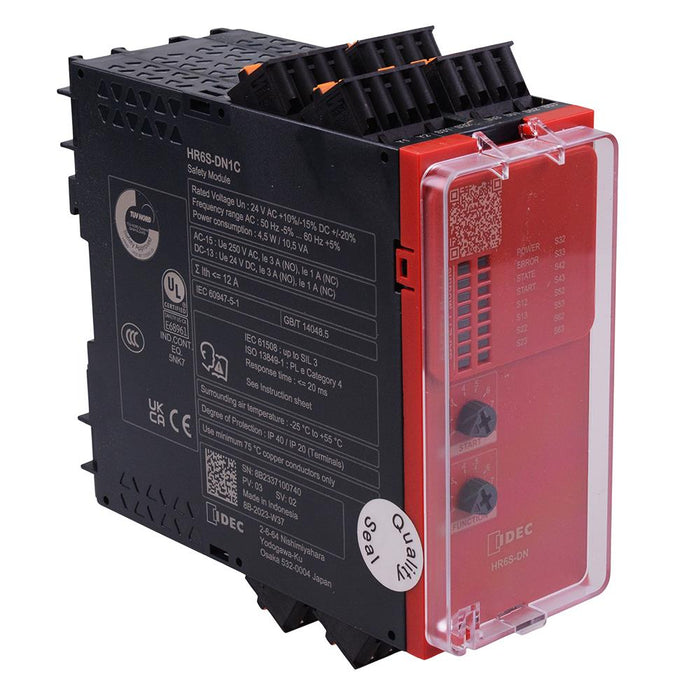

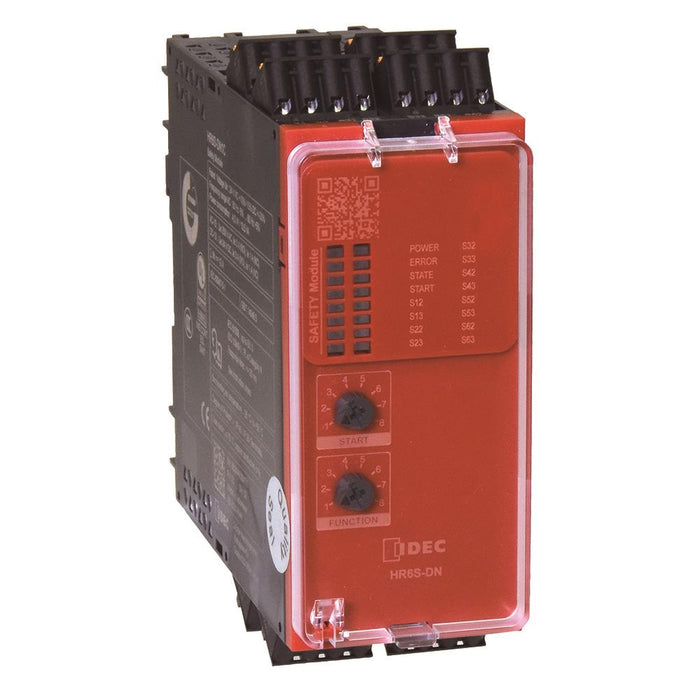

HR6S-DN1C Safety Relay Module DIN Rail 24VAC/DC IDEC

The HR6S-DN1C is a high performance IoT-ready safety relay module designed to bridge the gap between robust machine safeguarding and smart manufacturing. By integrating advanced diagnostic capabilities with unparalleled flexibility, the HR6S series doesn't just protect your operators, it keeps your entire production line running efficiently. The module protects both the operator and the machine by immediately stopping dangerous movements when instructed to stop by the operator or or when a failure in the safety circuit is detected.

Safety relay modules for IoT

Connects up to 6 input devices in parallel

Advanced diagnostic and output functions: Predictive maintenance

Connect to various input devices using a switch dial: setting a start function, setting an application function

A sealing strip to secure the protective cover is included, preventing the dials from being accidentally moved or settings from being changed

Outputs can be expanded

LED display for viewing status at a glance

Delay function

Push-in terminals

Number of relay contacts: 3 normally open instantaneous, 1 normally closed instantaneous

Maximum continuous current, normally open relay contacts: 6A

Maximum continuous current, normally closed relay contacts: 3A
