HS2A22SA APEM Single Axis Thumb Control Joystick IP67
by APEM
SKU 487975
MPN: HS2A22SA
Availability:
Out of stock
Sold out
Original price
£71.94
Original price
£71.94
-
Original price
£71.94
Original price
£71.94
Current price
£59.86
£59.86
-
£59.86
Current price
£59.86
The HS Series miniature joystick is a single pole, MOM-OFF-MOM micro switching joystick. Numerous button styles are available and the HS series may be specified for 2-way, 4-way and 5-way operation.

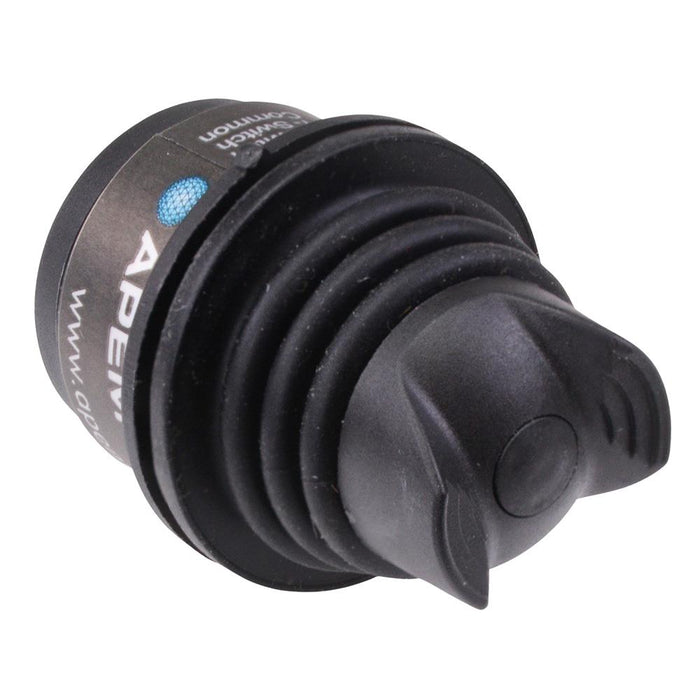

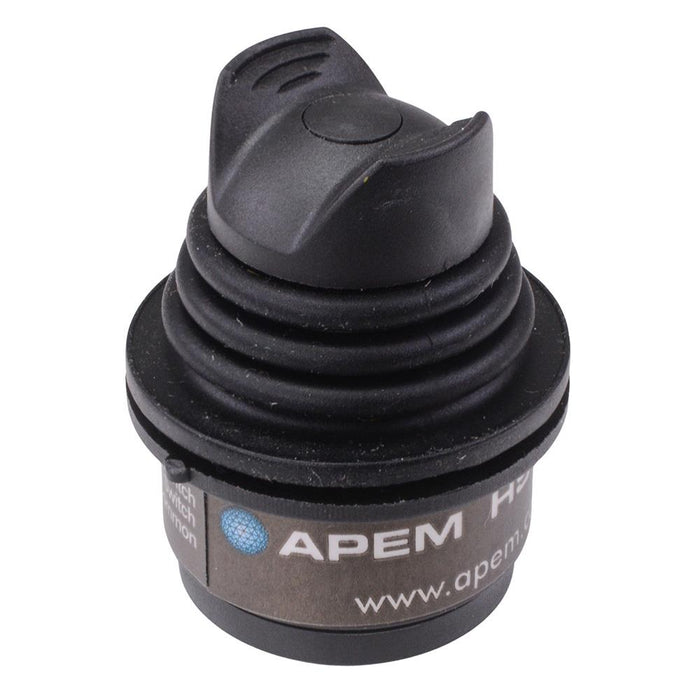

The HS2A22SA is a miniature single axis joystick featuring momentary-off-momentary function. The joystick features a winged hat handle and is suitable for drop-in or rear mounting.

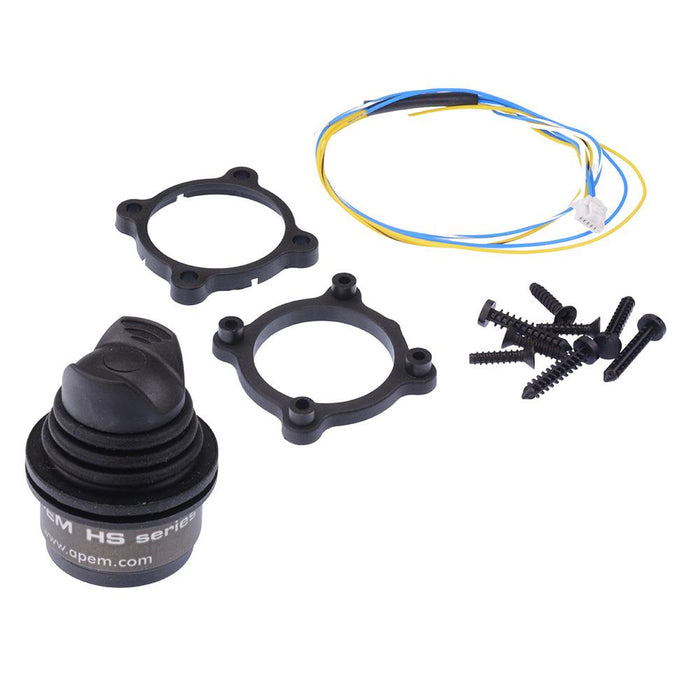

IP67 sealing Positive tactile feedback Momentary-off-momentary action Silver plated contacts Current rating: 100mA 30VDC Termination: 1.00 mm (0.039 in) pitch molex connector with 10" mating harness Panel cut-out: 25.65mm Comes complete with mounting kit Dimensions: 35.84 x 25.4mm (height x diameter)
The HS2A22SA is a miniature single axis joystick featuring momentary-off-momentary function. The joystick features a winged hat handle and is suitable for drop-in or rear mounting.
Specification
| Back Order Lead Time | 120 |
| Handle | Thumb |
| Joystick Travel | ±15° |
| Mechanical Life | 300,000 Cycles |
| MOQ | 1 |
| Number of Axis | 1 |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP67 |
| Technology | Microswitch |
| Terminal Type | 1.00mm Molex Connector |
