HS540 High Torque DC Motor 6-12V
SKU 485761
MPN: 485761
Availability:
Out of stock
Sold out
Original price
£3.62
-
Original price
£3.62
Original price
£3.62
Inc VAT
£3.62
-
£3.62
Current price
£3.62
Inc VAT

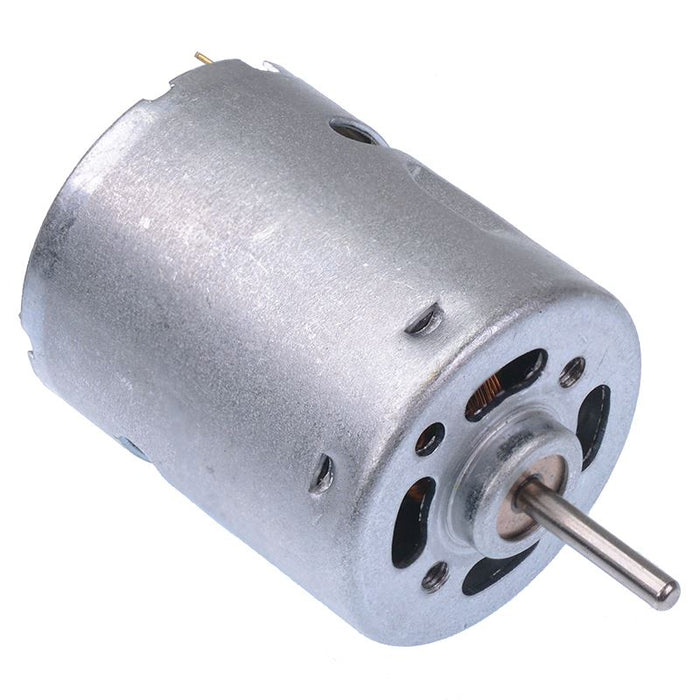

High power DC motor with a 6V to 12V operating voltage and 3.2mm diameter shaft. The motor is suitable for a wide range of applications requiring a high torque motor including industrial.
Operating voltage: 6-12V No load speed: 20,400rpm No load current: 1.9A Torque: 260g-cm Shaft size: 8.5 x 2mm (length x diameter) Dimensions: 67 x 35.8mm (length x diameter)
Specification
| Back order lead time | 120 Days |
| Diameter | 35.8mm |
| Length | 67mm |
| No load current | 1.9A |
| No load speed | 20,400rpm |
| Operating voltage | 6-12V |
| Rated load current | 12A |
| Rated load speed | 17,600rpm |
| Rated voltage | 7V |
| Shaft diameter | 2.0mm |
| Shaft length | 8.5mm |
