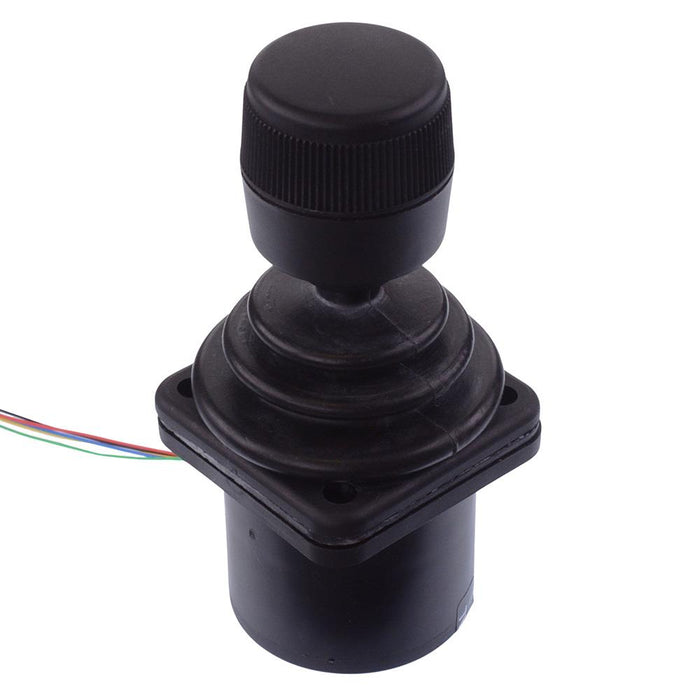

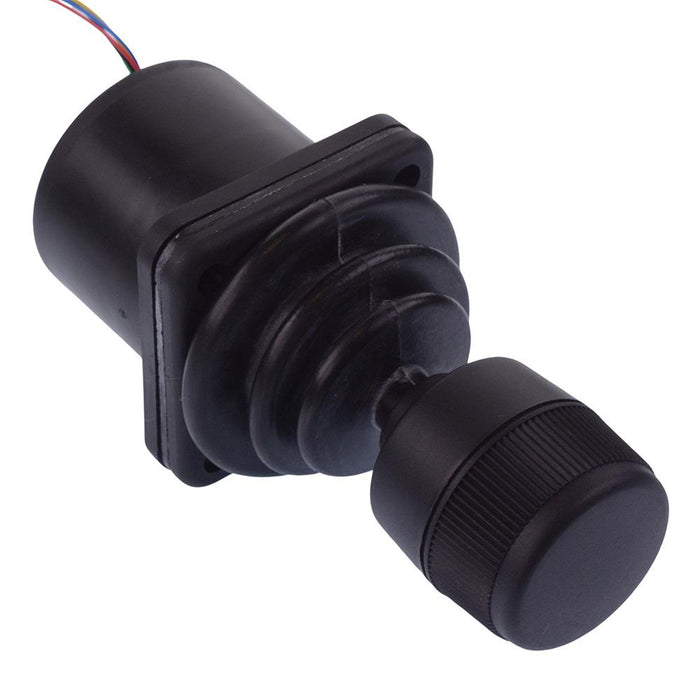

HT33S10 APEM 3 Axis Hall Effect Joystick IP68
by APEM
SKU 487245
MPN: HT33S10
Availability:
Out of stock
Sold out
Original price
£143.23
-
Original price
£143.23
Original price
£143.23
£162.42
£162.42
-
£162.42
Current price
£162.42
The HT33S10 joystick is a long life cycle, hall effect controller providing reliable 3 axis finger positioning control. The HT series joysticks are ideal for harsh environments, finger operated applications requiring increased durability and reliability. Widely used applications include on-road enclosed cabin vehicles, unmanned vehicles and military robotics.
3 axis IP68 sealing above panel Rated for 10 million lifecycles Square limiter plate Drop-in mounting Supply voltage: 5VDC Output: 0V to 5V (Rail to Rail) Panel cut-out: 46mm Mounting hole pitch: 38.2 x 38.2mm Dimensions: 114.6 x 52.1 x 52.1mm (height x length x width)
Specification
| Back Order Lead Time | 10 Days |
| Handle | Round |
| Joystick Travel | ±20° |
| Mechanical Life | 10,000,000 Cycles |
| Number of Axis | 3 |
| Operating Temperature | -25°C to +70°C |
| Protection Level | IP68 |
| Technology | Hall Effect |
| Terminal Type | Tail Leads |
