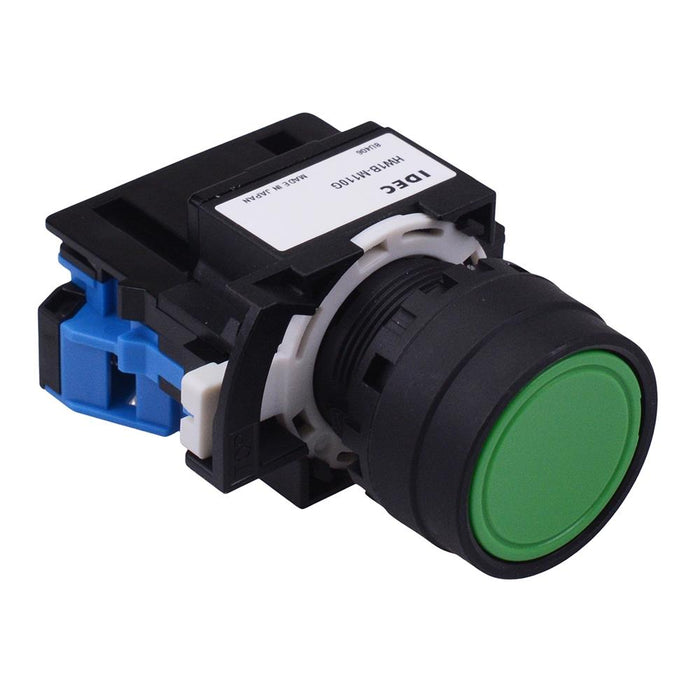

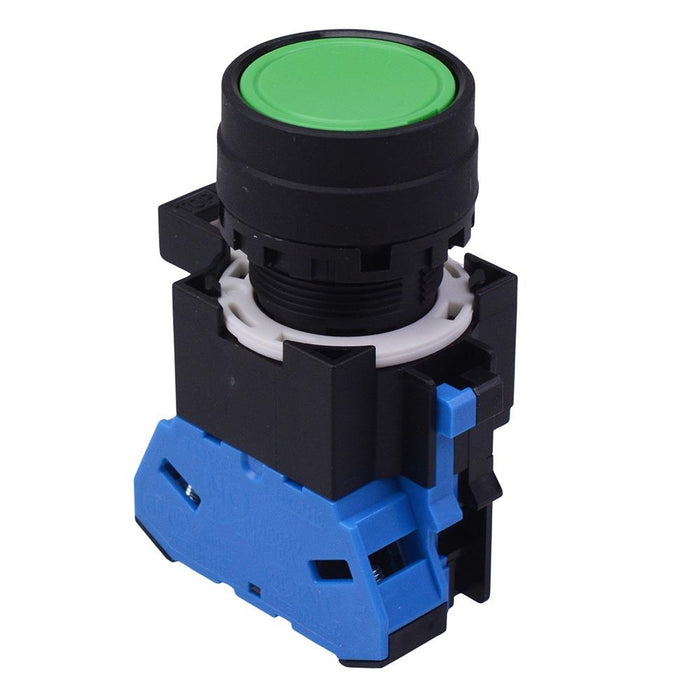

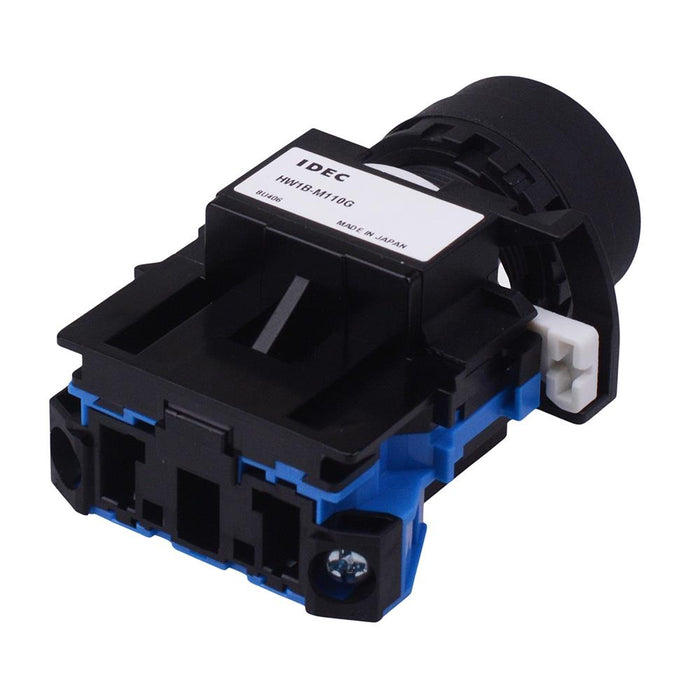

HW1B-M1F10G Green 22mm Momentary Push Button Switch NO IDEC
by IDEC
SKU 493177
MPN: HW1B-M1F10-G
Availability:
10 in stock
Original price
£11.91
-
Original price
£11.91
Original price
£11.91
£11.91
-
£11.91
Current price
£11.91
The HW1B-M110G is a green momentary push button switch from the HW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is easy to assemble. Suitable for standard 22mm panel cut-outs and meets worldwide approvals for most industrial applications.
NO contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Interchangeable switch components
Specification
| Actuation | Momentary |
| Back Order Lead Time | 126 Days |
| Colour | Green |
| Contact Configuration | NO |
| Contact Material | Gold Plated Silver |
| Contact Rating | 10A 600V |
| Current Rating | 10A |
| Electrical Life | 500,000 Cycles |
| Head Type | Extended |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +50°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | HW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
